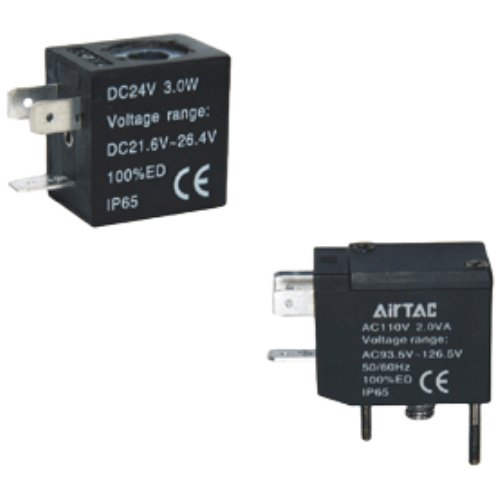

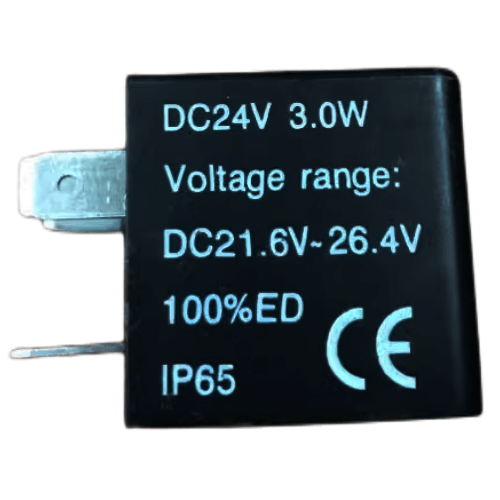

Airtac CDA Standard Solenoid Coil CDA092E
Category: Solenoid Valve Coils , Brand: AirTAC , Series: CDA
AirTAC CDA092E Standard Solenoid Coil Specifications
- Model: CDA092E
- Coil type: Standard encapsulated solenoid
- Voltage options: DC12V, DC24V, AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: 4.5W (DC), 5.5VA (AC)
- Insulation class: Class F (155℃)
- Protection rating: IP65 (dust-tight & water jet resistant)
- Temperature range: -20℃ to +55℃ (operating), -30℃ to +70℃ (storage)
- Duty cycle: 100% ED (continuous operation capable)

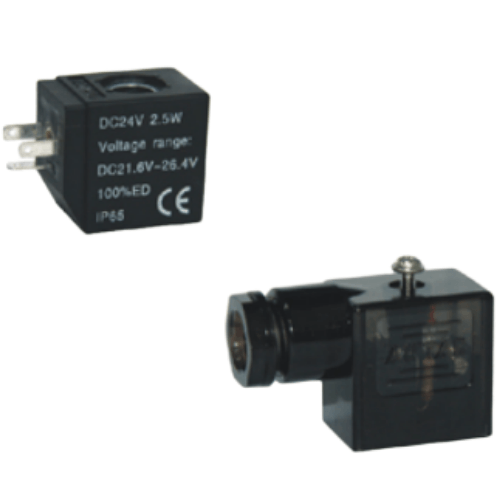

- Connection type: DIN43650 Form A (standard) with 300mm lead wire
- Core tube material: Stainless steel SUS304
- Coil housing: UL94 V-0 flame-resistant PBT
- Weight: 230g ±5g
- Dimensions: 45mm(W) × 38mm(H) × 34mm(D)
- Certifications: CE, RoHS, REACH compliant
High-performance solenoid coil engineered for reliable actuation in pneumatic valves. Features moisture-proof epoxy encapsulation and surge protection circuitry, with anti-vibration design maintaining stable operation under 10-55Hz frequency. Compatible with multiple valve series including 3V1, 4V110, and EV/EVS platforms.
- Plastic injection molding machine valve clusters
- Automated assembly line pneumatic controls
- Food processing equipment (oil/moisture-resistant version available)
- Semiconductor manufacturing gas control systems
- Elevator brake safety circuits
Installation guidelines:
Ensure coil voltage matches control system specifications (±10% tolerance).
Maintain minimum 2mm gap between adjacent coils in multi-valve configurations.
Use copper conductors with cross-section ≥0.75mm² for wiring connections.
| Property | Property Value |
|---|---|
| sku | CDA092E |
| Standard Voltage | AC24V |
| Coil Inner Diameter | 9.0mm |
