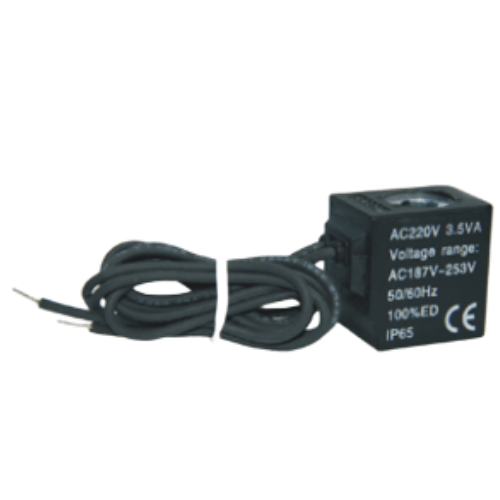

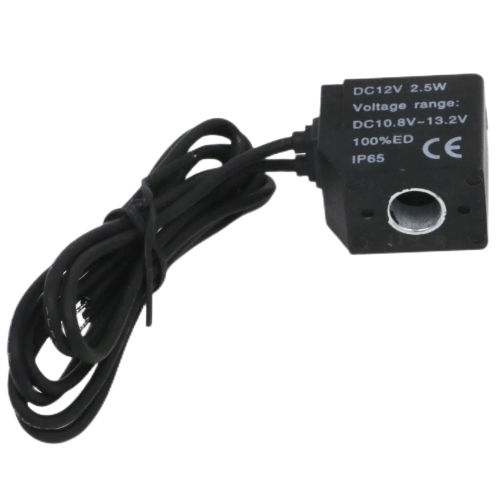

Airtac CLA Standard Solenoid Coil CLA080A
Category: Solenoid Valve Coils | Brand: AIRTAC | Series: CLA
AirTAC CLA080A Standard Solenoid Coil Technical Details
- Full model designation: CLA080A-□□□ (□□□ indicates voltage code)
- Coil type: Enclosed protection structure (Class F insulation)
- Voltage tolerance: ±10% (rated voltage)
- Power consumption: 3.5W (DC)/4.5VA (AC)
- Temperature range: -5℃ to 70℃ (with ice formation prevention required below 0℃)
- Thermal protection: Continuous duty (ED=100%)
- Protection rating: IP65 (dust-tight & protected against water jets)
- Mounting type: DIN connector (EN 175301-803 standard)
- Contact form: 2-pin plug connection
- Coil material: UL94 V-0 flame-resistant plastic housing
- Magnetic compatibility: For use with 10mm & 15mm valve spools
- Weight: 115g ±3% (including connector)
- Dimensions: 32mm(W) × 40mm(H) × 28mm(D) (excluding mounting tabs)
- Certification: CE, RoHS, REACH compliant
High-efficiency solenoid coil featuring dual-layer enameled copper wire winding with vacuum impregnation process. The epoxy-sealed construction ensures vibration resistance up to 10-55Hz/1.5mm amplitude. Designed for precise electromagnetic conversion with ≤5% magnetic decay after 1 million cycles.
- Pneumatic valve actuation in CNC machining centers
- Automatic production line clamping systems
- Food packaging machinery with frequent cycling requirements
- Cleanroom equipment requiring low particulate emission
- Mobile hydraulic platforms with shock/vibration exposure
Installation protocol:
Maintain minimum 3mm clearance from adjacent metal surfaces.
Use torque-controlled screwdriver (0.4-0.6N·m) for terminal connections.
Apply dielectric grease when used in humid environments (>80% RH).
| Property | Property Value |
|---|---|
| sku | CLA080A |
| Standard Voltage | AC220V |
| Coil Inner Diameter | 8.0MM |
