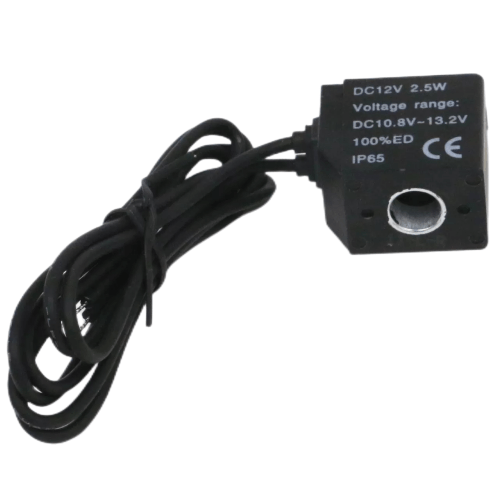

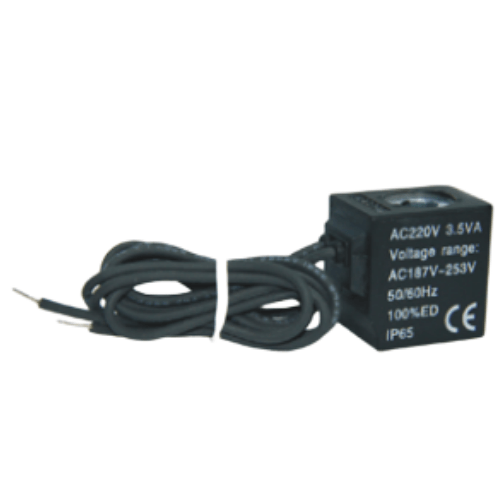

Airtac CLA Standard Solenoid Coil CLA080B
Category: Solenoid Valve Coils | Brand: AIRTAC | Series: CLA
AirTAC CLA080B Standard Solenoid Coil Specifications
- Model: CLA080B
- Coil type: Class B insulation (180℃ thermal class)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (±10% 50/60Hz), AC220V (±10% 50/60Hz)
- Power consumption: 4.5W (DC24V), 5.5VA (AC220V)
- Duty cycle: 100% ED (continuous operation capable)
- Insulation resistance: ≥100MΩ (500V DC megger test)
- Dielectric strength: 1,500V AC for 1 minute
- Temperature range: -20℃ to +70℃ (no icing)
- Protection rating: IP65 (dust-tight & protected against water jets)
- Lead wire: 200mm length, 0.5mm² PVC wire (UL1007 22AWG)
- Connector type: DIN43650 Form A compatible
- Weight: 215g ±5g
- Dimensions: 50mm(L) × 40mm(W) × 30mm(H)
High-performance solenoid coil with dual-voltage compatibility and reinforced epoxy encapsulation. Features anti-vibration design with stainless steel terminals and thermal overload protection. Electromagnetic compatibility meets EN 61000-6-2/6-4 standards. Compatible with ISO 4400/DIN 43650 valves.
- Automated assembly line valve actuators
- Industrial cleaning equipment solenoids
- Food processing machinery (oil & moisture resistant)
- HVAC pneumatic control systems
- Textile machine air circuit control
Installation note:
Ensure proper alignment with valve stem (max. 0.5mm lateral tolerance).
Use torque ≤0.8N·m when tightening mounting screws. Maintain minimum
15mm clearance from adjacent coils for heat dissipation.
| Property | Property Value |
|---|---|
| sku | CLA080B |
| Standard Voltage | DC24V |
| Coil Inner Diameter | 8.0MM |
