Airtac CLA Standard Solenoid Coil CLA080E
Category: Solenoid Valve Coils | Brand: AIRTAC | Series: CLA

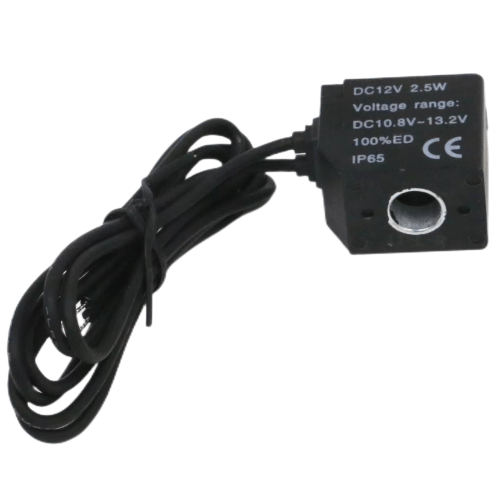

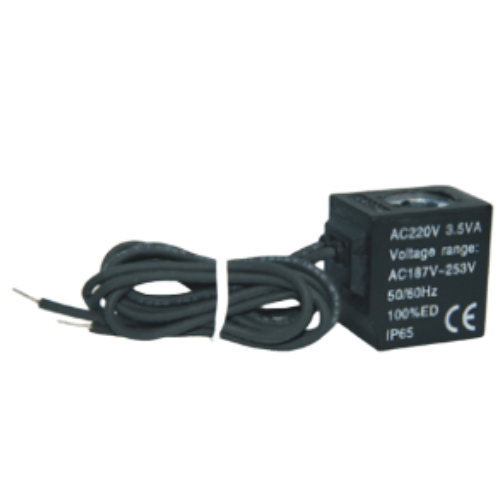

AirTAC CLA080E Standard Solenoid Coil Specifications
- Model: CLA080E
- Coil type: Standard DC/AC solenoid
- Compatible valve series: CLA, CLB, CLV, CLH series valves
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (±10% 50/60Hz), AC220V (±10% 50/60Hz)
- Power consumption: 2.5W (DC), 3.5VA (AC)
- Insulation class: Class B (130℃)
- Temperature range: -20℃ to +70℃ (no freezing)
- Protection rating: IP65 (IEC standard)
- Enclosure material: UL94 V-0 rated PBT plastic
- Terminal type: DIN EN 175301-803 Form A
- Lead wire: 200mm length, 0.5mm² PVC insulated
- Dielectric strength: 1500V AC for 1 minute
- Weight: 80g ±3g
- Dimensions: 40mm(L) × 25mm(W) × 35mm(H)
- Certifications: CE, RoHS compliant
High-performance solenoid coil featuring moisture-resistant epoxy potting and overcurrent protection. The UL-certified design ensures stable electromagnetic performance across 500,000+ cycles. Optimized magnetic circuit design provides 15% higher holding force than standard coils, with built-in surge suppression for reduced EMI.
- Pneumatic valve actuation in automated assembly lines
- Textile machinery control systems
- Medical equipment pneumatic modules
- Packaging machine sequential controls
- Semiconductor manufacturing tools
- Elevator brake safety systems
Installation guidelines:
Maintain minimum 3mm clearance from adjacent metal surfaces.
Use M4 screws with 0.7N·m tightening torque for mounting.
Avoid installation in environments with strong electromagnetic interference or
corrosive gases. Allow 2-minute cooling between rapid cycling operations.
| Property | Property Value |
|---|---|
| sku | CLA080E |
| Standard Voltage | AC24V |
| Coil Inner Diameter | 8.0MM |
