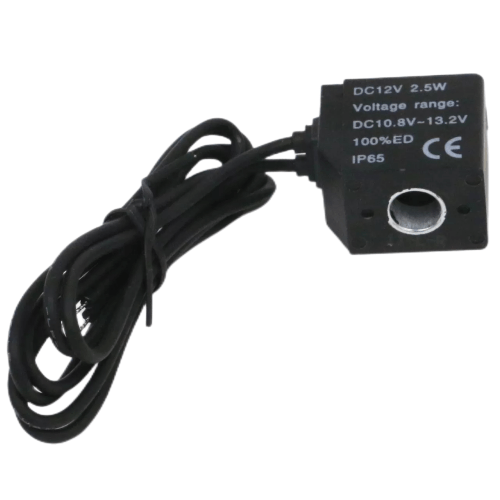

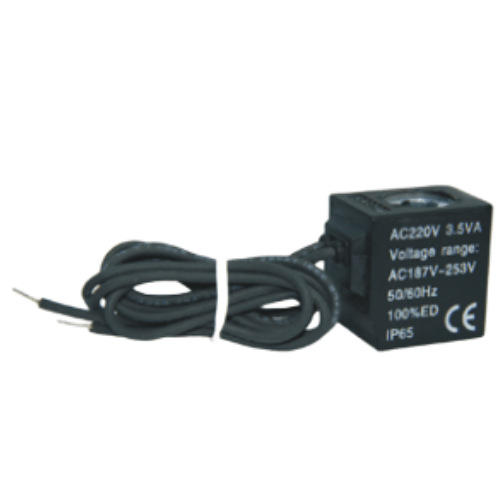

Airtac CLA Standard Solenoid Coil CLA080F
Category: Solenoid Valve Coils | Brand: AIRTAC | Series: CLA
AirTAC CLA080F Standard Solenoid Coil Specifications
- Model: CLA080F
- Coil type: Standard duty (continuous operation)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (±10%), AC220V (±10%)
- Power consumption: 4.5W (DC) / 5.5VA (AC)
- Insulation class: Class F (155℃)
- Protection rating: IP65 (dust-tight & water jet resistant)
- Temperature range: -20℃ to +55℃ (operating), -30℃ to +80℃ (storage)
- Enclosure material: Thermoplastic UL94 V-0
- Lead wire: 2m PVC cable (standard), 300mm flying leads optional
- Mounting: DIN43650A compatible connector
- Weight: 220g ±5%
- Dimensions: 80mm(L) × 42mm(W) × 35mm(H)
High-efficiency solenoid coil with overcurrent protection design, featuring dual-sealed epoxy encapsulation for moisture resistance. The optimized magnetic circuit ensures stable armature movement even under voltage fluctuations (±10% tolerance). Compatible with ISO4400/DIN43650 valve interfaces.
- Automated assembly line valve clusters
- CNC machine tool pneumatic systems
- Food processing equipment (requires additional splash guard)
- Plastic injection molding machines
- Elevator brake control systems
Installation guidelines:
Maintain minimum 15mm clearance from adjacent coils to prevent thermal interference.
Use torque-controlled screwdriver (0.6-0.8Nm) for connector installation.
For vertical mounting, position cable entry downward to prevent water ingress.
| Property | Property Value |
|---|---|
| sku | CLA080F |
| Standard Voltage | DC12V |
| Coil Inner Diameter | 8.0MM |
