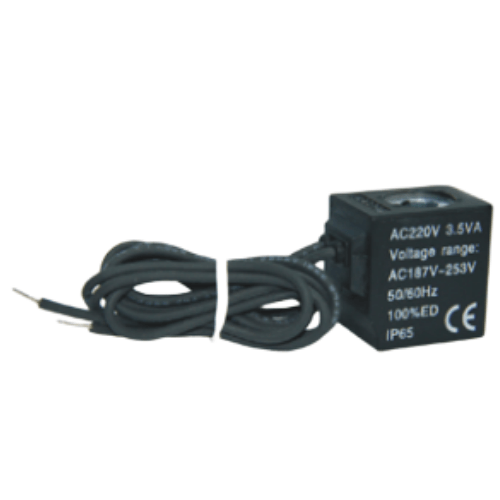

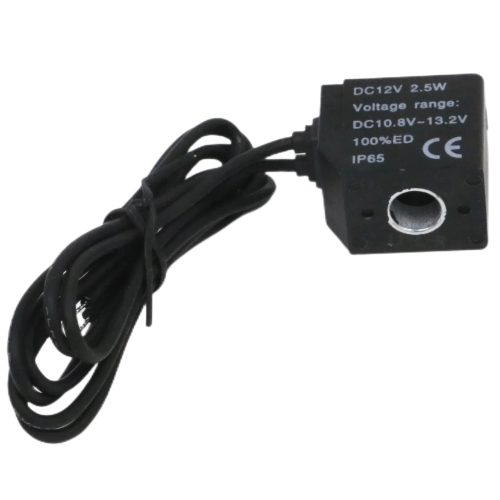

Airtac CLA Standard Solenoid Coil CLA092E
Category: Solenoid Valve Coils | Brand: AIRTAC | Series: CLA
AirTAC CLA092E Standard Solenoid Coil Technical Details
- Model: CLA092E (Direct replacement for CLA-09E)
- Type: DIN-type standard solenoid coil
- Voltage options: DC12V/24V ±10%, AC110V/220V ±10% (50/60Hz)
- Power rating: 5.5W (DC), 6.5VA (AC)
- Insulation class: Class F (155℃)
- Operating temperature: -5℃ to 150℃
- Protection rating: IP65 (conforms to EN60529)
- Lead wire length: 200mm ±10% (standard)
- Connector type: UL/CSA certified quick-disconnect plug
- Core material: High-purity electrolytic copper
- Weight: 320g ±5%
- Dimensions: 48mm(L) × 42mm(W) × 34mm(H)
- Mounting: Compatible with Ø25mm valve bodies
Electromagnetic coil designed for continuous duty cycle operation, featuring enhanced thermal dissipation through epoxy-free resin encapsulation. The copper-clad aluminum wire construction ensures optimal electrical conductivity while reducing eddy current losses. Compatible with ISO 4400 standard valve interfaces.
- Industrial automation control panels
- Plastic injection molding machines
- Textile machinery pneumatic systems
- Semiconductor manufacturing equipment
- Hydraulic power unit valve control
- Commercial vehicle braking systems
Installation guidelines:
Ensure coil and valve surfaces are debris-free before mounting.
Use torque ≤0.8N·m when tightening mounting screws.
Maintain minimum 15mm clearance from heat sources.
For AC models, install surge suppressors when controlling inductive loads.
| Property | Property Value |
|---|---|
| sku | CLA092E |
| Standard Voltage | AC24V |
| Coil Inner Diameter | 9.0mm |
