Airtac CLA Standard Solenoid Coil CLA092F
Category: Solenoid Valve Coils | Brand: AIRTAC | Series: CLA

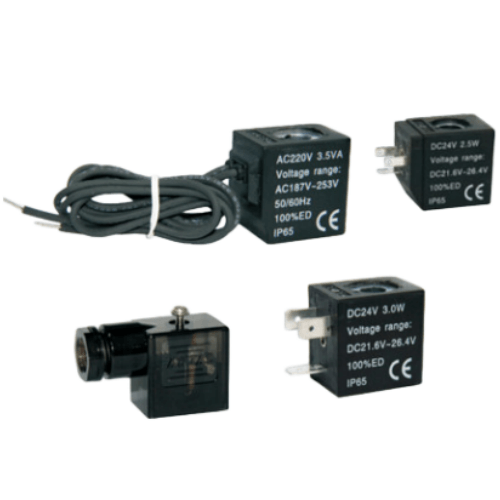

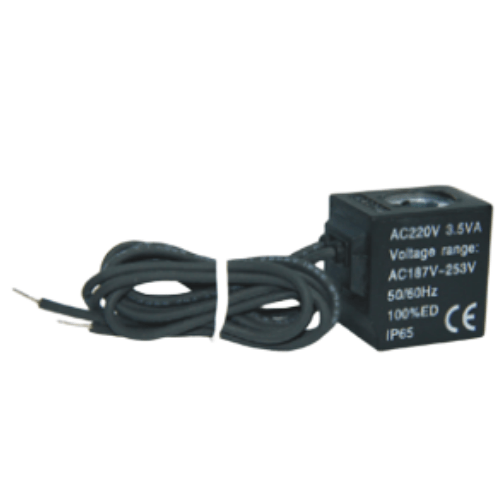

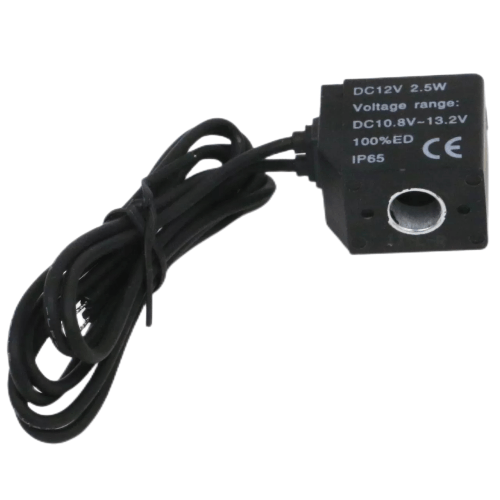

AirTAC CLA Series Solenoid Coil CLA092F Technical Details
- Model: CLA092F (Standard Type)
- Coil Structure: Class F Insulation System
- Voltage Options: DC12V/24V, AC24V/110V/220V (±10% tolerance)
- Power Consumption: 3.5W (DC), 4.5VA (AC)
- Duty Cycle: 100% ED (Continuous Operation Capable)
- Protection Rating: IP67 (Dustproof & Temporary Immersion Protection)
- Temperature Range: -30℃ to +130℃ (Ambient)
- Thermal Class: Class F (155℃ Maximum)
- Housing Material: UL94 V-0 Flame Retardant PBT
- Lead Wire: 300mm Length, 0.5mm² PVC Insulated (Custom Length Available)
- Terminal Type: DIN EN 175301-803 Form A
- Weight: 185g ±5g
- Dimensions: 44mm(W) × 35mm(H) × 37mm(D)
- Mounting Bracket: Zinc Alloy with Anti-Corrosion Coating
High-performance solenoid coil engineered for precision valve actuation in demanding environments. Features overcurrent protection design with built-in varistor (for AC models) and epoxy resin encapsulation to prevent moisture ingress. The optimized magnetic circuit ensures stable pull-in force even under voltage fluctuations.
- Automated production line valve clusters
- Plastic injection molding machine hydraulics
- Food processing equipment (NSF compliant version available)
- Electric forklift braking systems
- Wastewater treatment plant pneumatic controls
Installation Guidelines:
Maintain minimum 15mm clearance from adjacent coils to prevent thermal interference.
Use M4×12 stainless steel screws (1.2-1.5N·m torque) for vibration-prone environments.
For AC coils, install parallel RC circuits (0.1μF+100Ω) when switching inductive loads.
| Property | Property Value |
|---|---|
| sku | CLA092F |
| Standard Voltage | DC12V |
| Coil Inner Diameter | 9.0mm |
