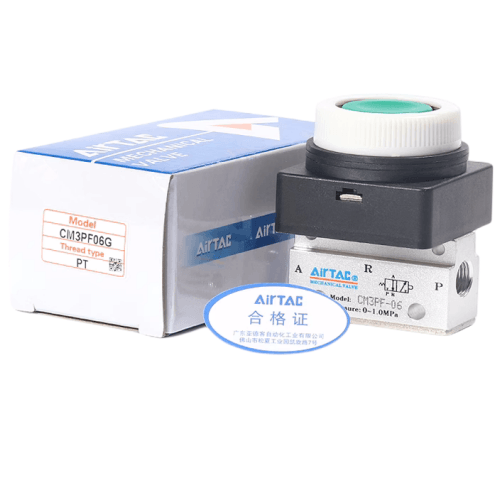

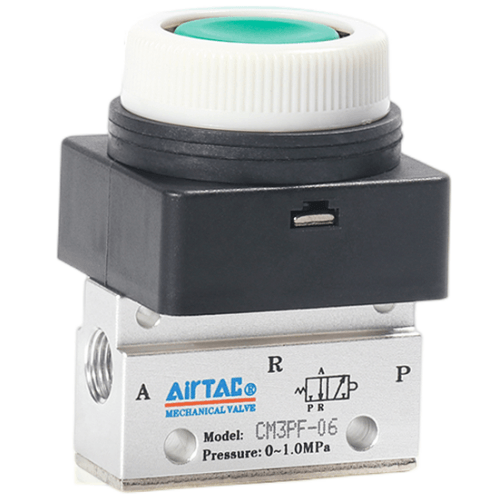

Airtac CM3PF Flat Push Button Mechanical Valve CM3PF06BG
1. CM3B, CM3L, CM3V, and CM3R series require external force for directional switching, suitable for position detection or limit switch applications.
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multi-configuration actuator heads for diverse operational conditions.
3. Shut-off type structure ensures excellent sealing performance, responsive direction switching, and lubrication-free operation.
4. Multi-position mounting capability enables flexible installation configurations.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for enhanced durability and operational stability.
6. CM3PMS and CM3PMX series integrate metal protective covers to safeguard button caps and prevent accidental activation from external forces.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3PF
AirTAC CM3PF Flat-Head Push Button Mechanical Valve CM3PF06BG Specifications
- Model: CM3PF06BG
- Type: 3/2-way normally closed (manual reset)
- Port size: PT1/8 (M5 optional with adapter)
- Operating pressure: 0.1–0.8 MPa (14.5–116 PSI)
- Mounting type: Panel mount with M18×1.5 thread
- Button type: Mushroom head with mechanical latching
- Body material: Nickel-plated brass
- Seal material: NBR (Nitrile) rubber
- Temperature range: -20℃ to 70℃ (-4°F to 158°F)
- Protection rating: IP67 (dust-tight, protected against temporary immersion)
- Actuation force: 25N±3N (5.6 lbf±0.67 lbf)
- Weight: 180g±5g (0.397 lb)
- Dimensions: 40mm(L) × 40mm(W) × 55mm(H) (1.57" × 1.57" × 2.17")
- Contact rating: 5A at 250VAC (resistive load)
- Mechanical life: ≥500,000 cycles
Industrial-grade emergency stop valve featuring positive mechanical latching and corrosion-resistant construction. The bright yellow button with red collar ensures high visibility in emergency situations. Requires manual reset after activation, with integrated position indicator window for status confirmation. Compatible with ISO 13850 safety standards.
- Emergency stop circuits in CNC machinery
- Safety interlocks for press equipment
- Production line emergency shutdown systems
- Robotic cell safety controls
- Hydraulic system override controls
Installation note:
Ensure full button travel clearance (minimum 5mm) and use anti-vibration shims
when mounting on moving equipment. Test monthly for smooth operation and
positive reset action.
Safety notice:
Always integrate with dual-channel safety relays and perform
risk assessment before system commissioning. Not suitable for
explosive atmospheres.
| Property | Property Value |
|---|---|
| sku | CM3PF06BG |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
