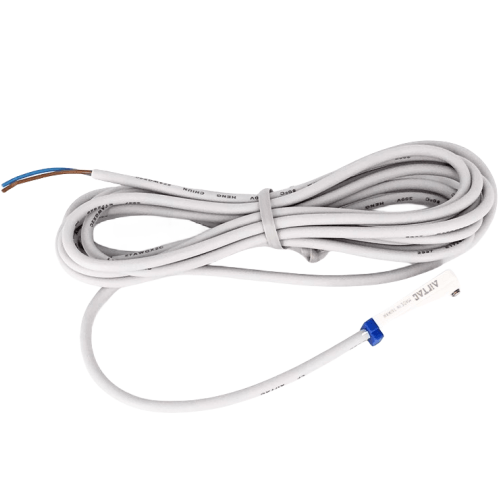

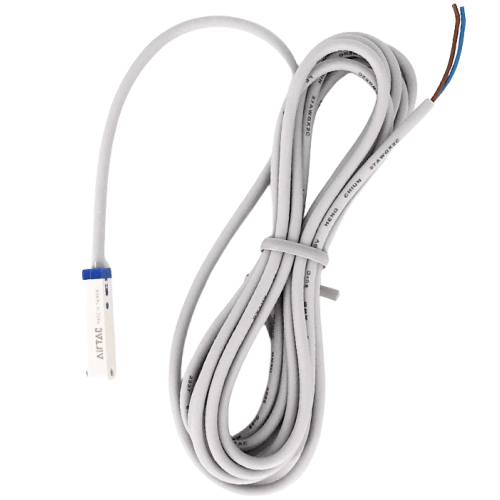

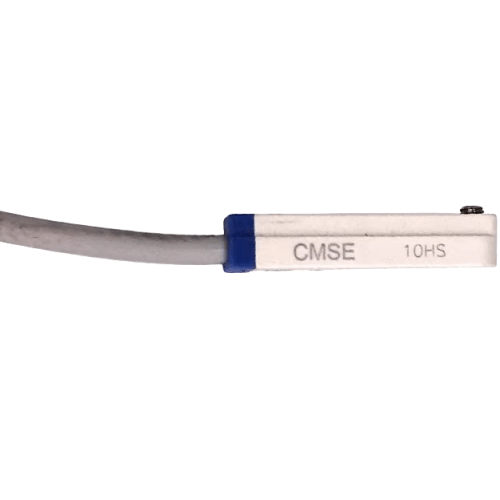

Airtac CMSE Magnetic Reed Sensor CMSE-020-H
This elegantly simple mechanism provides reliable switching control for diverse circuitry applications across industrial automation systems and commercial equipment, offering maintenance-free operation with exceptional contact stability in demanding environments.
AirTAC CMSE-020-H Reed Sensor Technical Details
- Model: CMSE-020-H
- Type: Non-contact magnetic reed sensor
- Detection distance: 0-20mm (adjustable)
- Operating voltage: 10-30V DC ±10%
- Output type: NPN normally open (NO) / PNP optional
- Current consumption: ≤15mA
- Load current: ≤200mA
- Response time: ≤1ms
- Hysteresis: ≤10% of detection distance
- Operating temperature: -25℃ to +70℃
- Protection rating: IP67 (dust/water resistant)
- Housing material: Nickel-plated brass
- Cable length: 2m standard (5m optional)
- Connector type: M8 4-pin quick disconnect
- Repeat accuracy: ±0.5mm
- Max. switching frequency: 500Hz
- Electrical life: 10⁷ operations
- Weight: 15g ±1g (sensor only)
- Dimensions: 20mm(L) × 8mm(W) × 8mm(H)
Compact magnetic proximity sensor with precision reed switch technology, designed for cylinder position detection in harsh industrial environments. Features gold-plated contacts for enhanced conductivity and oxidation resistance. The anodized aluminum sensing head provides EMI/RFI immunity and mechanical durability. Compatible with ISO 6432 standard cylinders.
- Pneumatic cylinder end position detection
- Automated assembly line sequencing
- Packaging machine stroke monitoring
- Elevator door position verification
- Medical equipment safety interlocks
- Food processing machinery (IP67 washdown)
Installation guidelines:
Mount sensor parallel to cylinder axis with ≤0.5mm gap between sensor face and magnet carrier.
Use shielded cable for runs >3m. Avoid proximity to strong electromagnetic fields or welding equipment.
| Property | Property Value |
|---|---|
| sku | CMSE-020-H |
