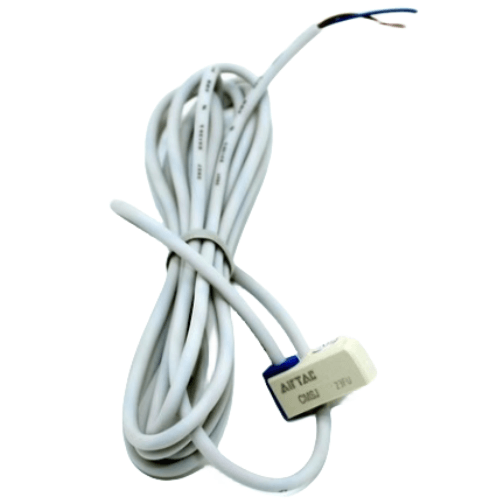

Airtac CMSJ Reed-type Sensor CMSJ-020
2. This deceptively simple mechanism provides robust circuit control for diverse industrial and commercial equipment applications through reliable reed contact operation.
AirTAC CMSJ-020 Reed Switch Sensor Technical Details
- Model: CMSJ-020
- Type: Non-contact magnetic proximity sensor (Reed switch)
- Detection method: Magnetic field actuation (1,000 Gauss min.)
- Output configuration: 2-wire NPN normally open
- Supply voltage: 5-240V DC/AC (universal voltage)
- Current capacity: ≤200mA
- Voltage drop: ≤3V @ 100mA
- Response time: ≤1ms
- Hysteresis: ≤1.5mm (actuation differential)
- Operating temp: -25℃ to 80℃
- Protection rating: IP67 (dust/water resistant)
- Housing material: PBT thermoplastic
- Contact material: Rhodium-plated contacts
- Cable length: 2m standard (UL2464 28AWG 2-core shielded)
- Weight: 22g ±0.5g
- Dimensions: 18mm(L) × 10mm(W) × 5.5mm(H)
Ultra-slim magnetic proximity detector designed for pneumatic cylinder position feedback. Features gold-plated reed contacts for 10 million+ operation cycles and surge protection up to 200V. The polarized design prevents reverse connection damage. Compatible with ISO cylinder mounting grooves.
- Pneumatic cylinder end-position detection
- Injection molding machine clamp monitoring
- Conveyor system pallet tracking
- Automated door safety interlocks
- Hydraulic press stroke limit control
Mounting guidance:
Install parallel to cylinder axis with ≤0.5mm air gap.
Maintain 3-5mm clearance from ferrous metals.
For multi-sensor setups, space ≥15mm apart to prevent mutual interference.
