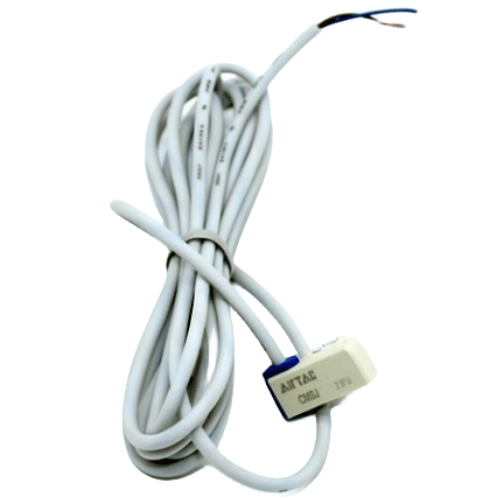

Airtac CMSJ Reed-type Sensor CMSJ-100
2. This deceptively simple mechanism provides robust circuit control for diverse industrial and commercial equipment applications through reliable reed contact operation.
AirTAC CMSJ-100 Reed Sensor Technical Details
- Model: CMSJ-100
- Type: Magnetic reed proximity sensor (non-contact)
- Detection distance: 1-100mm (adjustable)
- Output type: NPN/PNP NO+NC (selectable)
- Supply voltage: 10-30V DC (±10%)
- Output current: ≤200mA
- Leakage current: ≤0.01mA
- Protection rating: IP67 (IEC standard)
- Temperature range: -25℃ to +70℃
- Housing material: Nickel-plated brass + PBT
- Contact capacity: 5-240V AC/DC
- Response frequency: ≤2000Hz
- Indication: LED status light
- Cable length: 2m standard (shielded 4-core)
- Weight: 185g ±5g
- Dimensions: 100mm(L) × 18mm(W) × 18mm(H)
High-precision magnetic field detection sensor with dual output configuration, featuring corrosion-resistant construction and zero mechanical wear operation. The hermetically sealed reed switch enables reliable position feedback in contaminated environments. Includes reverse polarity protection and short-circuit prevention.
- Cylinder piston position detection
- Automated conveyor belt sequencing
- Injection molding machine safety interlocks
- CNC tool changer positioning
- Elevator door status monitoring
- Hydraulic press stroke limitation
Installation guidelines:
Maintain parallel alignment with magnetic actuator (max. 3° tolerance).
Minimum 20mm spacing between multiple sensors. Avoid ferrous metal
interference within 3x detection range. Use shielded conduit for
high EMI environments.
| Property | Property Value |
|---|---|
| sku | CMSJ-100 |
