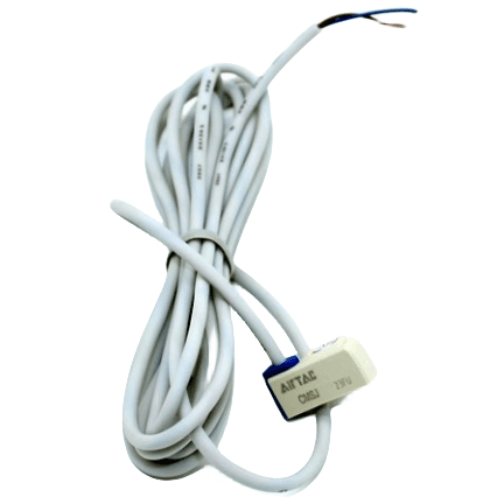

Airtac CMSJ Reed-type Sensor CMSJ-C12
2. This deceptively simple mechanism provides robust circuit control for diverse industrial and commercial equipment applications through reliable reed contact operation.
AirTAC CMSJ-C12 Reed Switch Sensor Technical Details
- Model: CMSJ-C12
- Type: Cylinder-mounted magnetic proximity sensor
- Voltage range: DC 5-240V (AC compatible with rectifier)
- Output type: 2-wire normally open (NO)
- Detection distance: 12±2mm (from sensor face to magnet surface)
- Operating temperature: -25℃ to +70℃
- Protection rating: IP67 (dust/water resistant)
- Housing material: Glass-filled PBT (30% fiber)
- Contact capacity: ≤100mA (resistive load)
- Response time: ≤1ms
- Hysteresis: ≤10% of detection distance
- Vibration resistance: 10-55Hz @1.5mm amplitude
- Shock resistance: 1000m/s² (3-axes)
- Cable length: Standard 2m (customizable up to 10m)
- Weight: 25g ±2g (sensor only)
- Dimensions: 12mm(W) × 19mm(H) × 60mm(L)
Compact magnetic sensor with overmolded strain relief for reliable position detection in pneumatic cylinders. Features reverse polarity protection and built-in surge suppression. The optimized magnetic circuit design ensures stable detection even with residual magnetism. Compatible with ISO 6432 standard cylinder grooves.
- Position feedback in ISO standard pneumatic cylinders
- Automatic door locking mechanisms
- Robotic arm position verification
- Assembly line workpiece presence detection
- Elevator car leveling systems
- Food processing equipment (IP67 washdown environments)
Installation guide:
Mount in cylinder groove with ≤0.5mm gap between sensor and magnet.
Use M3 set screw (1.2N·m torque) for secure fixation. Maintain minimum
15mm clearance from ferrous materials. For multiple sensors, maintain
≥30mm spacing between units.
| Property | Property Value |
|---|---|
| sku | CMSJ-C12 |
