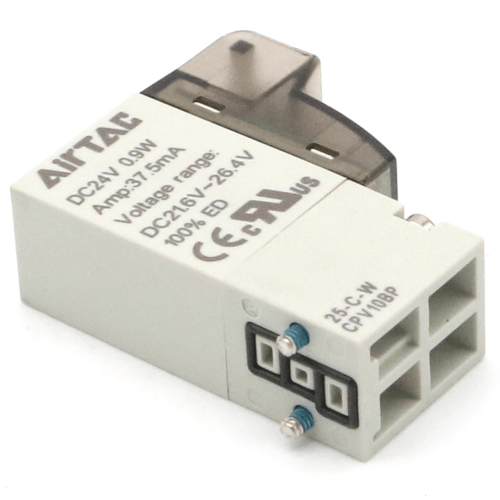

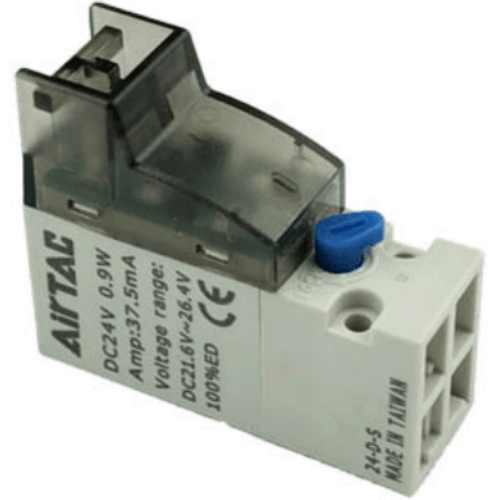

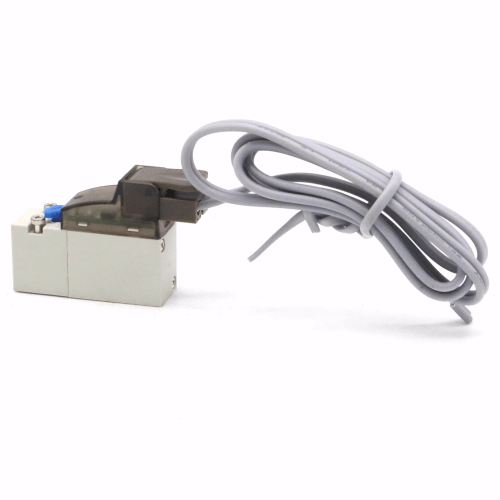

Airtac CPV10 Mini Solenoid Valve CPV10AP-050
2. Non-polarized DC input design with 360° adjustable terminal orientation for flexible wiring configuration.
3. Full-wave bridge rectifier minimizes AC power source humming noise.
4. Multiple voltage options available: AC220V, AC110V, DC24V, DC12V.
5. Low operating voltage ensures extended service life.
6. Manual override with LOCK function for simplified installation and commissioning.
Category: Micro Solenoid Valves | Brand: AIRTAC | Series: CPV10
AirTAC CPV10AP-050 Miniature Solenoid Valve Specifications
- Model: CPV10AP-050
- Type: 5/2-way monostable (direct-acting)
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure: 0.15–0.7 MPa
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Weight: 220g ±5g (with connector)
- Dimensions: 58mm(L) × 34mm(W) × 44mm(H)
- Seal material: Heat-resistant NBR (Nitrile Butadiene Rubber)
- Temperature range: -5℃ to 80℃ (non-freezing)
- Power consumption: DC: 3.2W max / AC: 4.5VA max
- Response time: ≤15ms (at 0.5MPa)
- Flow rate: 650L/min (ANR, at 0.5MPa differential pressure)
- Protection rating: IP67 (dustproof and waterproof)
- Port alignment: ISO 5599-1 standard (compliant with multiple manifold systems)
Ultra-compact 5-port pneumatic valve with optimized flow path design, featuring dual-coil surge protection and LED operation indicators. The anodized aluminum body ensures electromagnetic compatibility (EMC) compliance. Designed for high-frequency switching up to 10Hz with optional manual override. Requires 5μm filtered air with oil mist lubrication (ISO 8573-1 class 4).
- Multi-axis pneumatic gripper control in robotics
- Precision dosing systems in semiconductor manufacturing
- Automated test equipment (ATE) fixture clamping
- Compact pneumatic circuits in elevator door mechanisms
- Mobile hydraulic system pilot controls
Installation note:
For optimal performance, maintain ambient temperature below 60℃ and install with DIN rail mount (compliant with EN 60715). Allow 20mm clearance below valve for manifold heat dissipation. Use shielded cables for electrical connections in high-noise environments.
| Property | Property Value |
|---|---|
| sku | CPV10AP-050 |
| Standard Voltage | AC220V |
