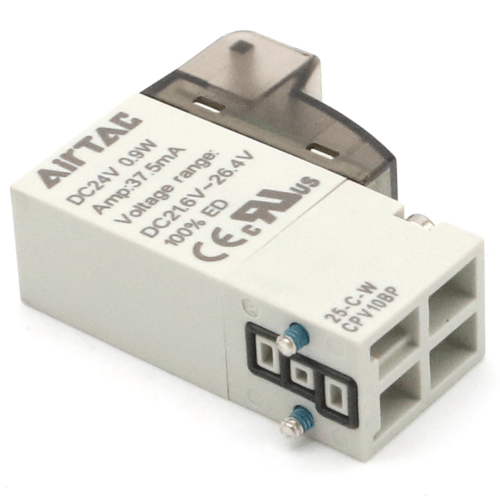

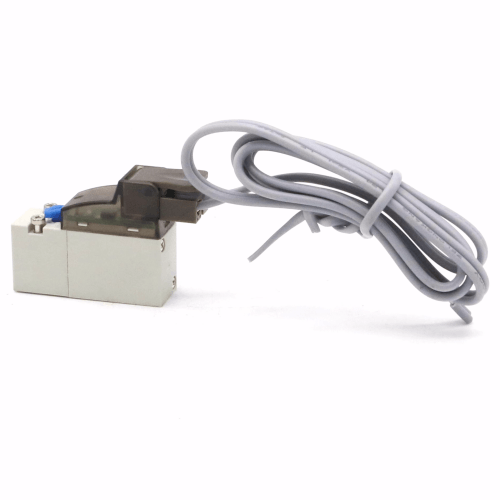

Airtac CPV10 Mini Solenoid Valve CPV10AP-200
2. Non-polarized DC input design with 360° adjustable terminal orientation for flexible wiring configuration.
3. Full-wave bridge rectifier minimizes AC power source humming noise.
4. Multiple voltage options available: AC220V, AC110V, DC24V, DC12V.
5. Low operating voltage ensures extended service life.

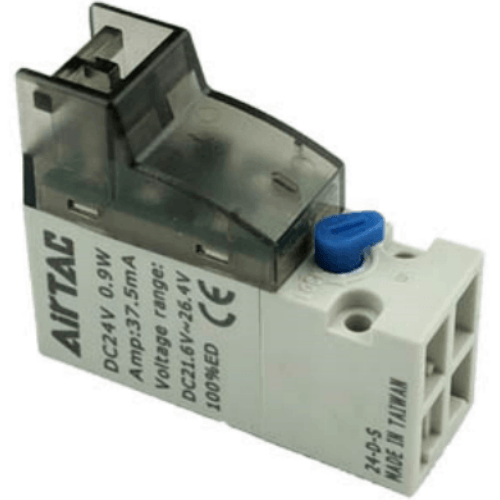

6. Manual override with LOCK function for simplified installation and commissioning.
Category: Micro Solenoid Valves | Brand: AIRTAC | Series: CPV10
AirTAC CPV10AP-200 Miniature Solenoid Valve Technical Details
- Model: CPV10AP-200 (Micro Series)
- Valve type: 3/2-way, normally closed (direct-acting)
- Port thread: PT1/8 (G1/8 available upon request)
- Operating pressure range: 0.05–0.7 MPa
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class B (130℃)
- Power consumption: DC: 1.6W | AC: 2.3VA
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Flow capacity: 0.45 Cv (Kv: 0.39)
- Seal material: NBR (Nitrile), optional FKM available
- Ambient temperature: -5℃ to 60℃ (no freeze)
- Fluid temperature: 0℃ to 60℃
- Protection class: IP65 (coil section)
- Weight: 0.18 kg (including coil)
- Dimensions: 34mm(W) × 27mm(H) × 51mm(L)
- Port spacing: 10mm center-to-center
Ultra-compact solenoid valve engineered for space-constrained pneumatic systems requiring rapid cycling. Features brass body with anodized aluminum coil housing for corrosion resistance. The direct-acting design enables reliable operation even at low pressures. Requires 5μm filtration (40μm max particle size). Compatible with air, inert gases, and light hydraulic fluids when using FKM seals.
- Desktop automation equipment
- Medical diagnostic instruments
- Semiconductor wafer handling robots
- Precision pneumatic grippers
- Portable oxygen concentrators
- 3D printer nozzle control systems
Installation guidelines:
Mount in vibration-free locations using M3 screws (max torque 0.4Nm).
For horizontal mounting, orient exhaust port downward. Maintain
5mm clearance around coil for heat dissipation. Use surge suppressor
for AC models in high-frequency switching applications.
| Property | Property Value |
|---|---|
| sku | CPV10AP-200 |
| Standard Voltage | AC220V |
