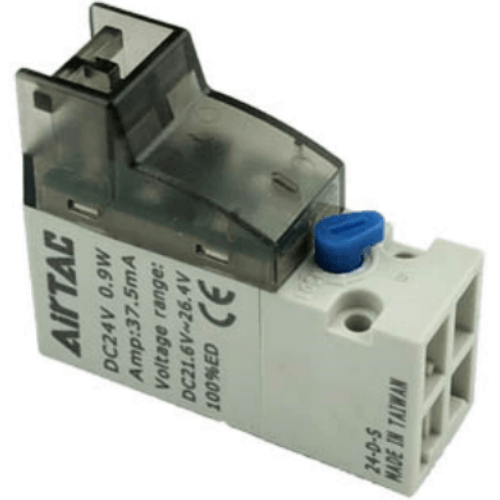

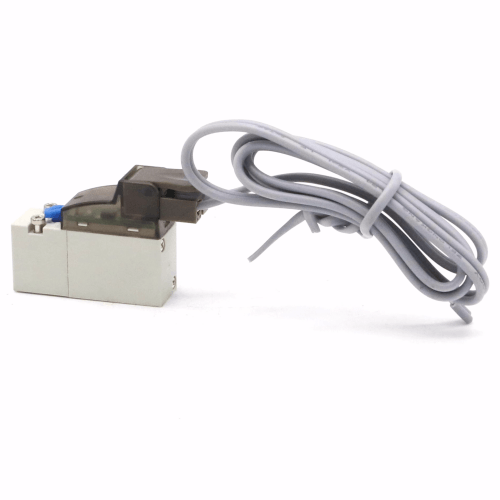

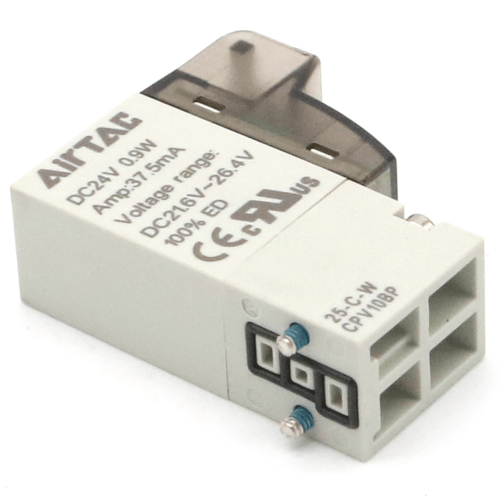

Airtac CPV10 Mini Solenoid Valve CPV10BP-050
2. Non-polarized DC input design with 360° adjustable terminal orientation for flexible wiring configuration.
3. Full-wave bridge rectifier minimizes AC power source humming noise.
4. Multiple voltage options available: AC220V, AC110V, DC24V, DC12V.
5. Low operating voltage ensures extended service life.
6. Manual override with LOCK function for simplified installation and commissioning.
Category: Micro Solenoid Valves | Brand: AIRTAC | Series: CPV10
AirTAC CPV10BP-050 Miniature Solenoid Valve Specifications
- Model: CPV10BP-050
- Type: 5/2-way single solenoid with spring return
- Port size: M5 (G1/8 equivalent)
- Operating pressure: 0.1–0.7 MPa
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Weight: 130g ±2% (without connector)
- Dimensions: 34mm(W) × 26mm(H) × 57mm(L)
- Seal material: Heat-resistant NBR (Nitrile Butadiene Rubber)
- Temperature range: -5℃ to 80℃ (non-freezing)
- Power consumption: 1.6W (DC), 2.5VA (AC)
- Flow capacity: 120L/min (ANR) @0.5MPa
- Response time: ≤15ms (excitation), ≤20ms (reset)
- Protection rating: IP67 (connector installed)
- Port thread depth: 7.5mm (M5)
Ultra-compact 5-port valve with dual pressure capability, featuring brass alloy body with electroless nickel plating for enhanced corrosion resistance. The low-profile design incorporates a manual override button and LED operation indicator. Requires 5μm filtered compressed air with oil mist ≤1mg/m³.
- Compact pneumatic grippers in robotics
- Dental chair positioning systems
- PCB handling equipment
- Miniature pneumatic cylinders control
- Laboratory analytical instruments
- Textile machinery air flow control
Installation note:
Maximum allowable lateral load on ports: 4.9N. For horizontal mounting,
ensure exhaust ports face downward to prevent dust ingress.
Use DIN43650 Form C connectors for optimal IP rating.
| Property | Property Value |
|---|---|
| sku | CPV10BP-050 |
| Standard Voltage | DC24V |
