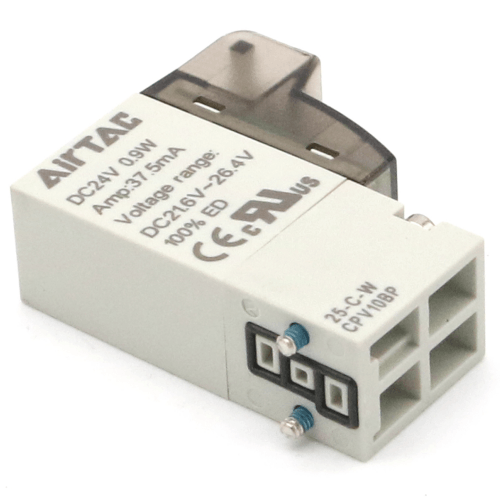

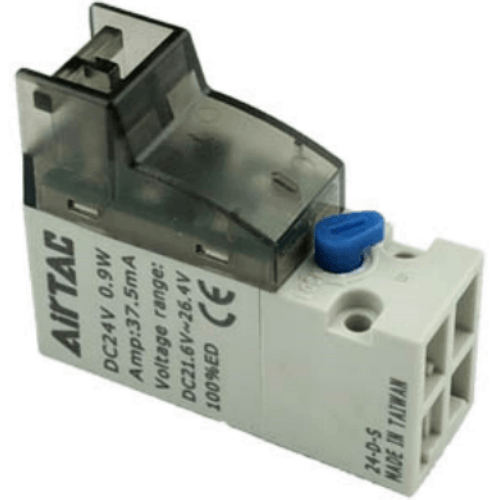

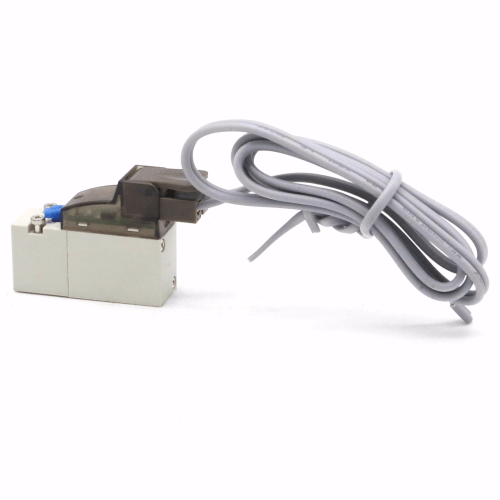

Airtac CPV10 Mini Solenoid Valve CPV10BP-200
2. Non-polarized DC input design with 360° adjustable terminal orientation for flexible wiring configuration.
3. Full-wave bridge rectifier minimizes AC power source humming noise.
4. Multiple voltage options available: AC220V, AC110V, DC24V, DC12V.
5. Low operating voltage ensures extended service life.
6. Manual override with LOCK function for simplified installation and commissioning.
Category: Micro Solenoid Valves | Brand: AIRTAC | Series: CPV10
AirTAC CPV10BP-200 Micro Solenoid Valve Technical Details
- Model: CPV10BP-200 (Subminiature Series)
- Valve type: 5/2-way direct-acting with single solenoid
- Port configuration: M5 threaded ports (ISO 228/1 standard)
- Effective area: 10mm² (critical flow path optimized)
- Operating pressure: 0.1–0.7 MPa (14.5–101.5 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: 1.1W (DC), 2.2VA (AC)
- Response time: ≤15ms (excitation), ≤20ms (de-energization)
- Ambient temperature: -5℃ to 60℃ (operational), -20℃ to 80℃ (storage)
- Fluid temperature: 0–60℃ (requires dew point -25℃ below ambient)
- Seal material: Heat-resistant NBR (Nitrile Butadiene Rubber)
- Body material: Reinforced PBT resin (UL94 V-0 flame rating)
- Protection class: IP67 (dustproof and waterproof immersion up to 1m)
- Weight: 95g ±2g (excluding connectors)
- Dimensions: 30mm(W) × 25mm(H) × 40mm(D) (port axis direction)
- Port thread depth: 7mm (recommended engagement length)
Ultra-compact pneumatic valve designed for high-density installations in robotics and precision instruments. Features dual-chamber design for stable switching and integrated surge suppression circuitry. Compatible with ISO 8573-1:2010 [3:4:3] class compressed air. Requires 5μm filtration (40μm max particle size).
- Collaborative robot end-effector tooling
- PCB handling vacuum/pressure systems
- IVD medical analyzer pneumatic modules
- Semiconductor wafer processing equipment
- Precision dispensing systems (glue/paint)
Installation protocol:
Mount using M3 screws (1.2N·m torque limit). Maintain ≥5mm spacing between valves in bank arrangements.
For vertical mounting, position exhaust port downward. Perform 50% duty cycle max (continuous operation requires heat sink).
| Property | Property Value |
|---|---|
| sku | CPV10BP-200 |
| Standard Voltage | DC24V |
