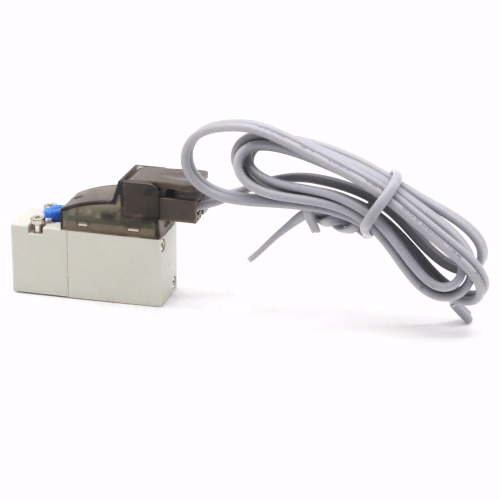

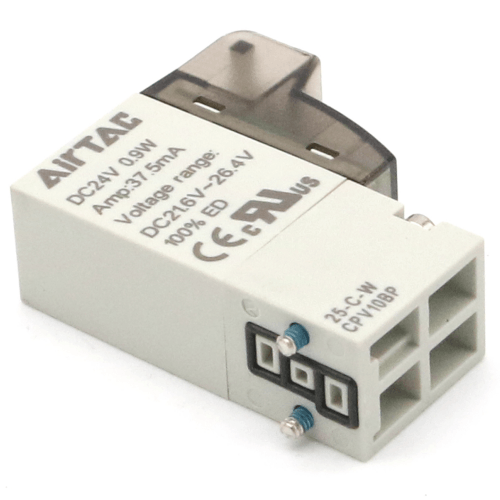

Airtac CPV10 Mini Solenoid Valve CPV10CP-050
2. Non-polarized DC input design with 360° adjustable terminal orientation for flexible wiring configuration.
3. Full-wave bridge rectifier minimizes AC power source humming noise.
4. Multiple voltage options available: AC220V, AC110V, DC24V, DC12V.
5. Low operating voltage ensures extended service life.

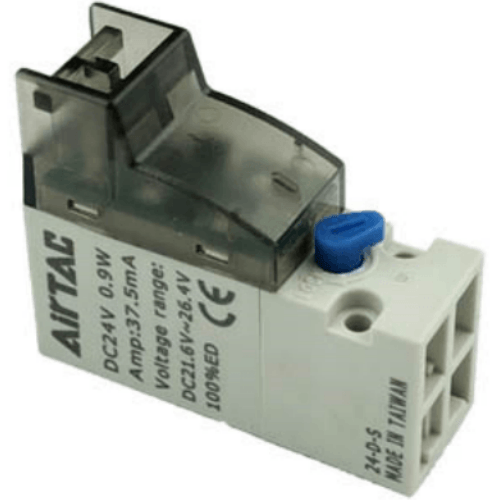

6. Manual override with LOCK function for simplified installation and commissioning.
Category: Micro Solenoid Valves | Brand: AIRTAC | Series: CPV10
AirTAC CPV10CP-050 Miniature Solenoid Valve Technical Details
- Model: CPV10CP-050
- Type: 3/2-way normally closed (pilot-operated)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: 1.5W (DC) / 2.2VA (AC)
- Flow coefficient: Cv 0.14 (Kv 0.12)
- Response time: ≤20ms (actuation/release)
- Weight: 180g ±5g (without connector)
- Dimensions: 45mm(L) × 30mm(W) × 50mm(H) (excluding fittings)
- Seal material: Heat-resistant NBR (Nitrile) - VDI 2433 compliant
- Ambient temperature: -5℃ to 60℃ (with no freezing)
- Medium temperature: 0℃ to 60℃
- Protection class: IP65 (dust-tight & water jet resistant)
- Body material: Aluminum alloy (anodized surface)
- Electrical connection: DIN43650 Form A (standard)
Ultra-compact electromagnetic valve designed for precision pneumatic control systems requiring space optimization. Features anti-vibration structure with copper-free aluminum construction, making it suitable for cleanroom environments. The low-hysteresis plunger design ensures consistent flow control even with rapid cycling (up to 5Hz operation). Requires 5μm filtered dry air with ISO 8573-1:2010 class 4.4.3 air quality.
- Medical gas control in portable analyzers
- Precision dosing systems for laboratory equipment
- Compact robotic end-effector controls
- Semiconductor wafer handling machines
- Mobile pneumatic test instruments
- Textile machinery thread tension control
Installation guidelines:
Mount in any orientation (horizontal recommended for maximum debris resistance).
Maintain minimum 5mm clearance around coil for heat dissipation.
Use anti-vibration washers in high-frequency applications (>3Hz).
| Property | Property Value |
|---|---|
| sku | CPV10CP-050 |
| Standard Voltage | AC 110V |
