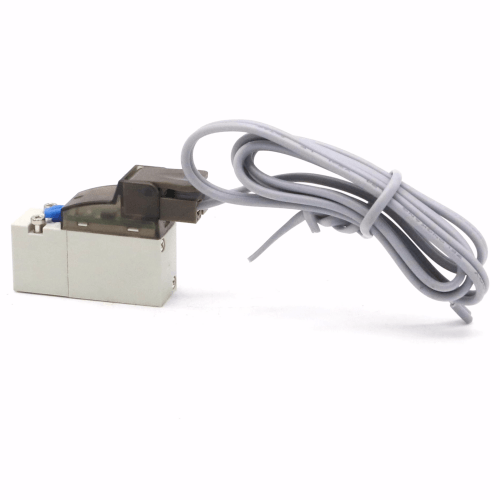

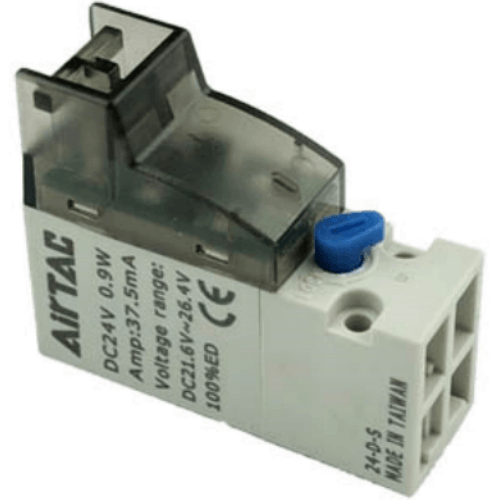

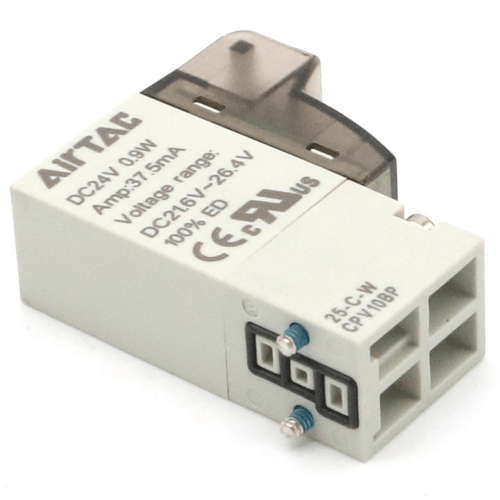

Airtac CPV10 Mini Solenoid Valve CPV10CP-200
2. Non-polarized DC input design with 360° adjustable terminal orientation for flexible wiring configuration.
3. Full-wave bridge rectifier minimizes AC power source humming noise.
4. Multiple voltage options available: AC220V, AC110V, DC24V, DC12V.
5. Low operating voltage ensures extended service life.
6. Manual override with LOCK function for simplified installation and commissioning.
Category: Micro Solenoid Valves | Brand: AIRTAC | Series: CPV10
AirTAC CPV10CP-200 Miniature Solenoid Valve Specifications
- Model: CPV10CP-200
- Type: 5/2-way direct-acting (monostable)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.1–0.7 MPa
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Weight: 180g ±5g
- Dimensions: 45mm(L) × 25mm(W) × 35mm(H)
- Body material: Anodized aluminum alloy
- Seal material: Heat-resistant NBR (Nitrile)
- Temperature range: -5℃ to 60℃ (non-freezing)
- Flow coefficient (Cv): 0.35
- Response time: ≤15ms (at rated voltage)
- Power consumption: 1.6W (DC), 2.5VA (AC)
- Protection rating: IP65 (dustproof & water jet resistant)
- Port thread depth: 9mm (recommended engagement)
Ultra-compact 5-port pneumatic valve optimized for space-constrained automation systems. Features a low-power coil design with surge protection and manual override capability. The hard anodized surface treatment enhances corrosion resistance in humid environments. Requires 5μm filtered dry air (ISO 8573-1:2010 class 4.4.3) with oil mist lubrication ≤1mg/m³.
- Medical device pneumatic circuits (infusion pumps, dental chairs)
- Semiconductor wafer handling robots
- Precision pneumatic grippers in assembly lines
- Textile machinery shuttle controls
- Beverage dispensing system valves
- 3D printer pneumatic tool changers
Installation guidelines:
Mount with vibration-damping brackets in high-frequency operation scenarios.
Maintain ambient temperature below 50℃ with 20mm clearance for heat dissipation.
Lubricate sliding parts with ISO VG32 turbine oil every 5 million cycles.
| Property | Property Value |
|---|---|
| sku | CPV10CP-200 |
| Standard Voltage | AC 110V |
