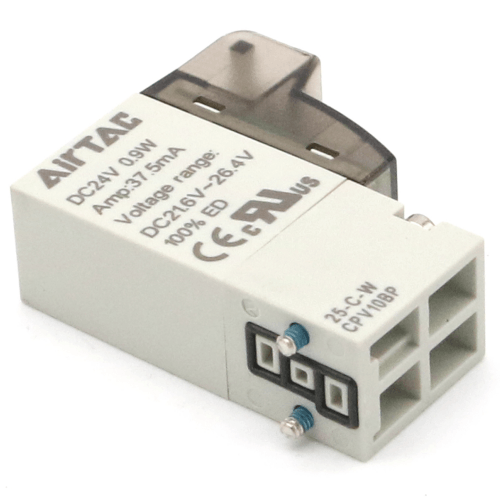

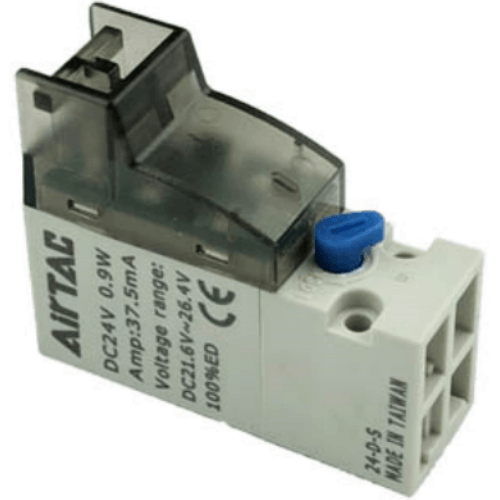

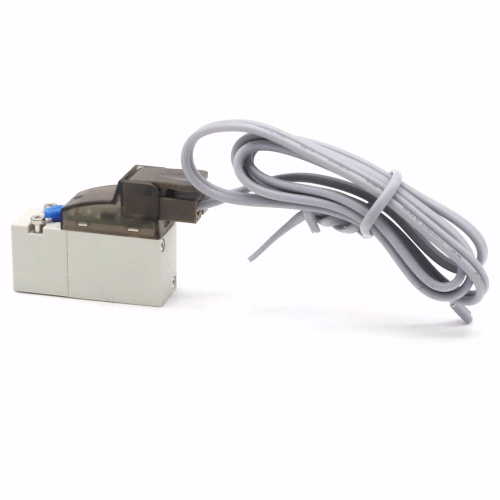

Airtac CPV10 Mini Solenoid Valve CPV10FP-050
$15.11
Regular price
$22.61
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CPV10FP-050
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
CPV10 Miniature Solenoid Valve Features:
1. Integrated surge suppressor protects the valve from voltage spike damage.
2. Non-polarized DC input design with 360° adjustable terminal orientation for flexible wiring configuration.
3. Full-wave bridge rectifier minimizes AC power source humming noise.
4. Multiple voltage options available: AC220V, AC110V, DC24V, DC12V.
5. Low operating voltage ensures extended service life.
6. Manual override with LOCK function for simplified installation and commissioning.
Category: Micro Solenoid Valves | Brand: AIRTAC | Series: CPV10
Maintenance protocol:
Lubricate spool assembly with ISO VG32 turbine oil every 500,000 cycles
when used in high-cycle applications (>5Hz switching frequency).
2. Non-polarized DC input design with 360° adjustable terminal orientation for flexible wiring configuration.
3. Full-wave bridge rectifier minimizes AC power source humming noise.
4. Multiple voltage options available: AC220V, AC110V, DC24V, DC12V.
5. Low operating voltage ensures extended service life.
6. Manual override with LOCK function for simplified installation and commissioning.
Category: Micro Solenoid Valves | Brand: AIRTAC | Series: CPV10
AirTAC CPV10FP-050 Miniature Solenoid Valve Specifications
- Model: CPV10FP-050
- Type: 5/2-way direct-acting (monostable)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.1–0.7 MPa (14.5–101.5 PSI)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Weight: 95g ±2g (without connector)
- Dimensions: 36mm(L) × 24mm(W) × 41mm(H) (1.42"×0.94"×1.61")
- Seal material: FKM/Viton (high temp) or NBR standard
- Temperature range: -10℃ to 80℃ (NBR), -10℃ to 150℃ (FKM)
- Power consumption: 1.2W (DC), 2.2VA (AC)
- Response time: ≤15ms (exhaust to actuation)
- Protection rating: IP67 (dust/water resistant)
- Port thread depth: 8mm (minimum engagement)
- Max flow rate: 350 NL/min (at 0.5 MPa)
Ultra-compact 5-port pneumatic valve with gold-plated terminals for enhanced conductivity. Features manual override button for system debugging and zero-pressure start capability. Requires 5μm filtered compressed air with ISO 8573-1:2010 Class 3.2.4 purity standards.
Industrial Applications:
- Multi-axis pneumatic gripper sequencing
- Dental chair positioning systems
- Semiconductor wafer handling robots
- Textile machinery thread control
- Automated PCR testing equipment
Maintenance protocol:
Lubricate spool assembly with ISO VG32 turbine oil every 500,000 cycles
when used in high-cycle applications (>5Hz switching frequency).
| Property | Property Value |
|---|---|
| sku | CPV10FP-050 |
| Standard Voltage | DC12V |
