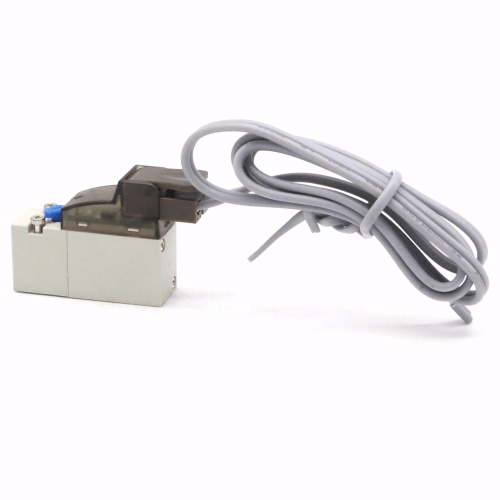

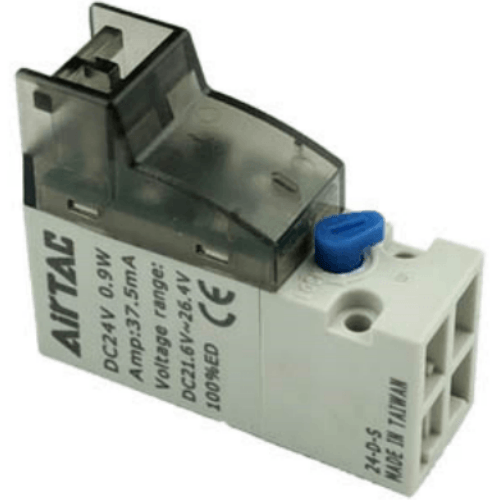

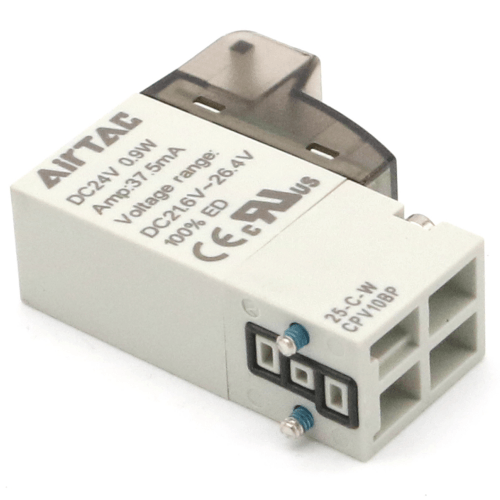

Airtac CPV10 Mini Solenoid Valve CPV10FP-200
2. Non-polarized DC input design with 360° adjustable terminal orientation for flexible wiring configuration.
3. Full-wave bridge rectifier minimizes AC power source humming noise.
4. Multiple voltage options available: AC220V, AC110V, DC24V, DC12V.
5. Low operating voltage ensures extended service life.
6. Manual override with LOCK function for simplified installation and commissioning.
Category: Micro Solenoid Valves | Brand: AIRTAC | Series: CPV10
AirTAC CPV10FP-200 Miniature Solenoid Valve Technical Details
- Model: CPV10FP-200
- Valve type: 5/2-way monostable (direct-acting)
- Port configuration: M5 threaded (ISO 228/1 standard)
- Effective area ratio: 2.0 mm² (pilot port) / 4.5 mm² (main port)
- Operating pressure range: 0.1–1.0 MPa (14.5–145 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: 1.2W (DC models), 2.5VA (AC models)
- Response time: ≤15ms (exhaust to actuation)
- Flow capacity: 120 NL/min (Cv=0.14 at 0.5 MPa)
- Ambient temperature: -5℃ to 60℃ (non-freezing)
- Fluid temperature: 0℃ to 60℃
- Seal material: Heat-resistant NBR (Nitrile Butadiene Rubber)
- Protection class: IP67 (dustproof & temporary immersion)
- Electrical connection: DIN43650 Form A connector
- Weight: 98g ±2g (excluding connector)
- Dimensions: 40mm(L) × 24mm(W) × 34.5mm(H)
Ultra-compact pneumatic valve engineered for high-density installations requiring rapid cycling. Features copper-free aluminum alloy body with oxidation-resistant coating and dual-chamber design for stable pressure compensation. Requires 5μm filtration with oil mist lubrication (ISO 8573-1 class 4).
- Multi-axis robotic gripper systems
- Precision dental chair pneumatics
- Semiconductor wafer handling equipment
- Mobile laboratory analyzers
- Compact HVAC damper controls
Installation protocol:
Mount with vibration-damping gaskets in environments exceeding 15Hz harmonic frequency.
Maintain minimum 5mm clearance between adjacent valves in bank configurations.
Initial run-in requires 50+ actuation cycles at 0.3 MPa before full-load operation.
| Property | Property Value |
|---|---|
| sku | CPV10FP-200 |
| Standard Voltage | DC12V |
