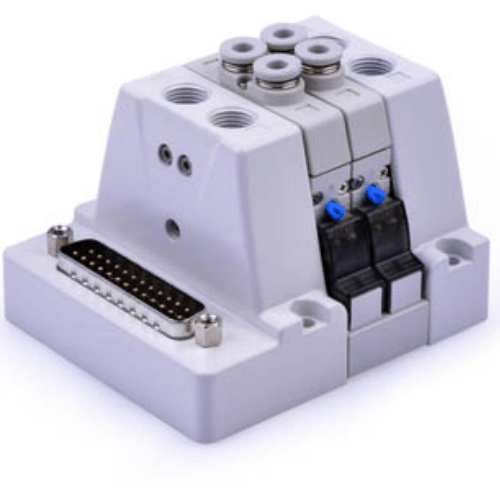

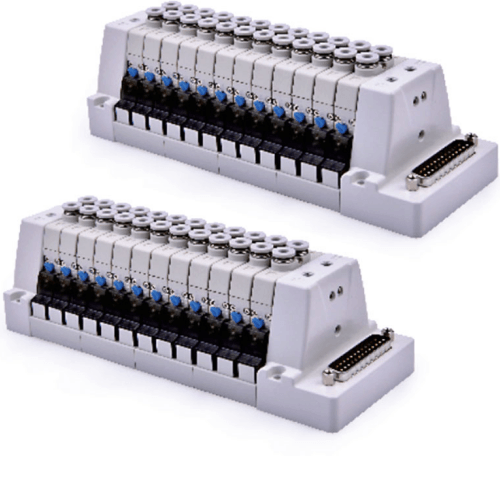

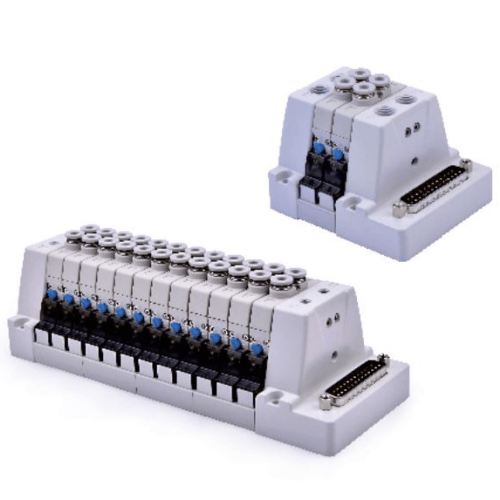

Airtac CPV10S Integrated Manifold Valve CPV10SJ03F16F
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. Manual override function incorporated into solenoid valves for simplified installation and system adjustment.
3. Features low actuation voltage and extended service life for enhanced operational reliability.
Category: Modular Valves | Brand: AIRTAC | Series: CPV10S
AirTAC CPV10S Integrated Valve CPV10SJ03F16F Technical Details
- Model: CPV10SJ03F16F
- Type: 5-port 2-position (5/2-way) solenoid valve with spring return
- Port size: PT1/8 (G1/8 optional)
- Operating pressure range: 0.15–0.9 MPa
- Voltage variants: DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Weight: 320g ±5% (with connectors)
- Dimensions: 56mm(L) × 42mm(W) × 78mm(H)
- Seal material: FKM (Fluorocarbon Rubber)
- Temperature tolerance: -10℃ to 80℃ (non-freezing)
- Power consumption: 2.2W (DC), 3.5VA (AC)
- Flow capacity: 850 l/min (ANR)
- Response time: ≤15ms (at 0.5MPa)
- Protection class: IP67 (dust/water resistant)
- Port thread depth: 9mm (minimum engagement)
High-flow modular valve with integrated silencer and quick-connect terminals. Features gold-plated solenoid cores for enhanced durability in humid environments. Designed for manifold mounting with ISO 15407-1 compliant interface. Requires 5μm filtered lubricated air (ISO 8573-1 class 4).
- Pneumatic cylinder sequencing in assembly lines
- Textile machinery clamp controls
- Beverage filling station actuators
- Automated warehouse sorting systems
- Plastic injection molding ejectors
Mounting guidance:
Use M4 mounting screws with 0.6-0.8Nm torque. Maintain ambient humidity below 85% RH.
For horizontal installations, install exhaust ports downward to prevent debris accumulation.
| Property | Property Value |
|---|---|
| sku | CPV10SJ03F16F |
