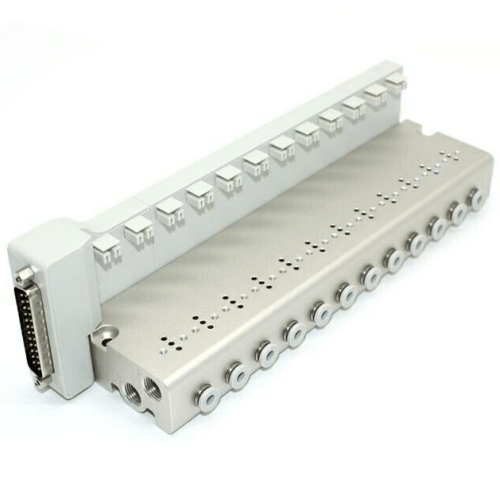

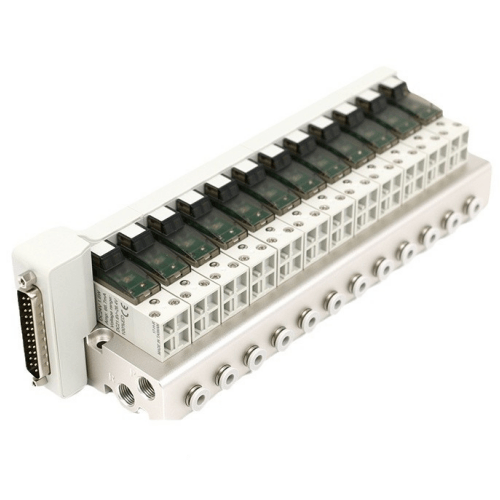

Airtac CPV15S Integrated Valve Manifold CPV15S10F
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、Features modular design with flexible expandability, allowing arbitrary combination and extension of connected solenoid valves. Optional blanking plates included for configuration flexibility.
Category: Solenoid Valve Manifold Base , Brand: AirTAC , Series: CPV15S
AirTAC CPV15S10F Integrated Valve Base Specifications
- Model: CPV15S10F
- Type: Modular valve manifold base (ISO 15407-1 compliant)
- Port size: G1/8 (M5 optional via adapters)
- Operating pressure: 0.05–1.0 MPa
- Valve compatibility: CPV10/CPV15 series solenoid valves
- Mounting pattern: 22mm center-to-center (ISO 4400 standard)
- Weight: 380g ±5% (aluminum alloy version)
- Dimensions: 76mm(L) × 22mm(W) × 36mm(H)
- Surface finish: Anodized aluminum (black) or stainless steel
- Temperature range: -10℃ to 80℃ (with NBR seals)
- Port thread depth: 10mm (minimum engagement 7 threads)
- Leakage rate: ≤3 bubbles/min under 0.5 MPa
High-density valve manifold base featuring precision-machined flow channels and redundant O-ring sealing. Designed for multi-valve clustering in compact pneumatic systems, with dual-row port configuration for simplified piping. Includes integrated silencer pockets and valve alignment guides.
- Multi-axis pneumatic actuator control systems
- Semiconductor wafer handling robots
- Beverage filling machine valve clusters
- Automated test equipment (ATE) pneumatic modules
- Pharmaceutical blister packaging lines
Installation note:
Apply 2.5-3.5Nm torque during valve mounting. Use Loctite 542 thread sealant
for stainless steel ports. Maintain 15mm clearance below base for maintenance access.
