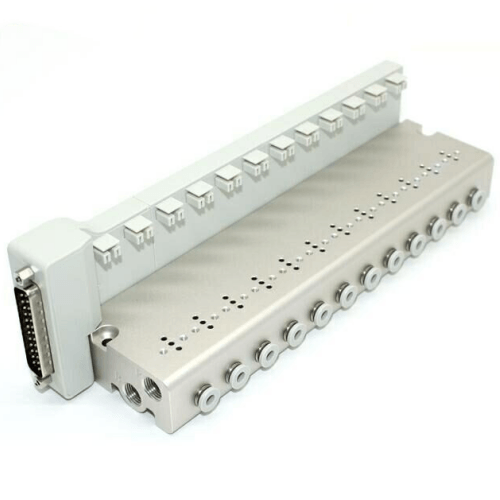

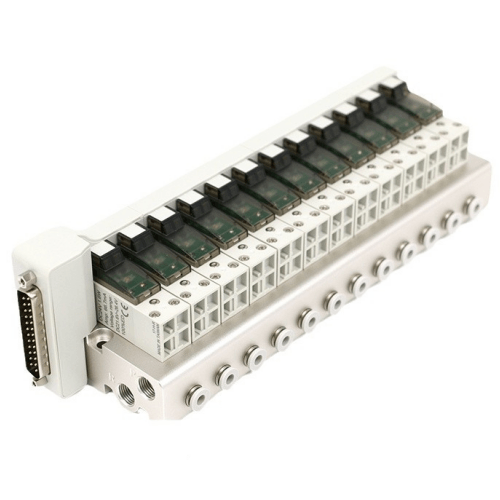

Airtac CPV15S Integrated Valve Manifold CPV15S2F
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、Features modular design with flexible expandability, allowing arbitrary combination and extension of connected solenoid valves. Optional blanking plates included for configuration flexibility.
Category: Solenoid Valve Manifold Base , Brand: AirTAC , Series: CPV15S
AirTAC CPV15S2F Integrated Valve Base Specifications
- Model: CPV15S2F (CPV15S series manifold base)
- Type: Modular aluminum alloy manifold for solenoid valve integration
- Port size: G1/8 (ISO standard)
- Number of stations: 6 stations (expandable via side connectors)
- Max operating pressure: 0.1–0.8 MPa
- Material: 6063-T5 aluminum body, NBR seals
- Surface treatment: Anodized oxidation (10-15μm thickness)
- Weight: 0.5 kg ±5% (excluding valves)
- Dimensions: 150mm(L) × 30mm(W) × 40mm(H)
- Temperature range: -20℃ to 80℃
- Port spacing: 15mm center-to-center
- Compatible valves: CPV15S series solenoid valves
- Leakage rate: ≤3 bubbles/min (ISO 6952 standard)
- Protection rating: IP54 (dust protected, water splashed)
High-density modular base designed for centralized pneumatic circuit control, featuring precision-machined flow channels for minimal pressure drop. The T-slot mounting system enables tool-free valve installation and supports multi-layer stacking. Includes built-in bypass exhaust and auto-sealing mechanism during valve removal.
- Multi-axis pneumatic actuator control in assembly lines
- Compact PLC-controlled automation stations
- Textile machinery air circuit distribution
- Semiconductor handling equipment clusters
- Multi-cylinder sequencing systems
Installation note:
Use M4×12mm stainless steel screws for mounting (torque ≤0.8N·m).
Apply silicone-free sealant on end plates. Maximum recommended
stack height: 3 bases. Maintain 50mm clearance below for tubing access.
Maintenance: Clean internal passages annually using non-corrosive solvents. Replace sealing kits (Part# CPV15S-SK) every 500,000 cycles or 2 years.
