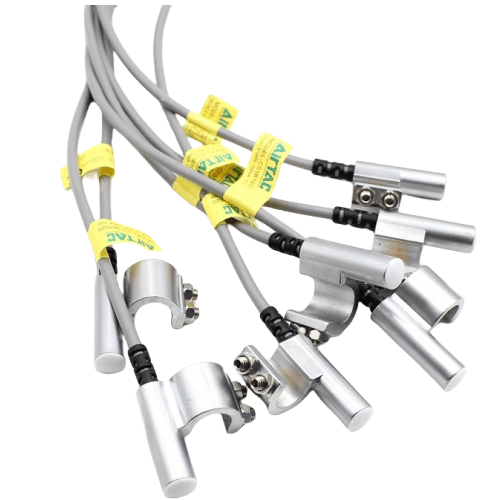

Airtac CS1B Reed Sensor CS1B2020
2. This deceptively simple mechanism provides reliable circuit control through contact closure, demonstrating exceptional durability and stability across diverse industrial automation systems and commercial equipment applications.
AirTAC CS1B2020 Reed Proximity Sensor Technical Details
- Model: CS1B2020
- Type: Magnetic reed switch (non-contact)
- Detection distance: 20±2mm (from magnet surface)
- Output type: 2-wire N.O. (Normally Open)
- Voltage range: DC 5-240V / AC 90-250V
- Current capacity: ≤200mA
- Response frequency: ≤200Hz
- Protection rating: IP67 (dust/water resistant)
- Temperature range: -25℃ to +70℃
- Housing material: PBT + Glass fiber
- Cable length: 2m standard (4-core shielded)
- Weight: 35±2g (sensor only), 120g (with bracket)
- Dimensions: 18mm(W) × 36mm(L) × 8mm(H)
High-precision magnetic proximity switch with hermetically sealed reed contacts. Features reverse polarity protection and surge suppression. Designed for continuous position feedback in pneumatic systems with 1.5x safety margin beyond rated detection distance. Compatible with ISO cylinder mounting standards.
- Cylinder piston position detection
- Automated conveyor limit sensing
- Hydraulic press safety interlocks
- Elevator door position verification
- Injection molding machine cycle counting
Installation guidelines:
Mount parallel to cylinder axis with ±1mm alignment tolerance.
Maintain minimum 3mm clearance from ferrous metals.
For optimal performance, use with AirTAC SM-15 magnetic rings (not included).
