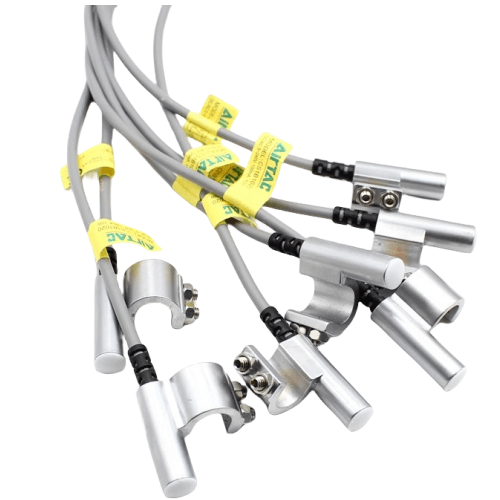

Airtac CS1B Reed Sensor CS1B4040
2. This deceptively simple mechanism provides reliable circuit control through contact closure, demonstrating exceptional durability and stability across diverse industrial automation systems and commercial equipment applications.
AirTAC CS1B4040 Reed Sensor Technical Specifications
- Model: CS1B4040
- Type: Magnetic reed switch (cylinder position sensor)
- Output configuration: NPN normally open (NO)
- Voltage range: 5-240V DC/AC (non-polarized)
- Current rating: ≤200mA
- Leakage current: <1mA
- Response time: ≤1.5ms
- Operating temperature: -25℃ to +70℃
- Protection rating: IP67 (water & dust resistant)
- Housing material: Glass fiber reinforced PBT
- Contact material: Tungsten-rhenium alloy
- Cable length: 2m standard (customizable)
- Cable type: 3-core shielded (PVC insulation)
- Weight: 28g ±1g
- Dimensions: 20mm(W) × 8mm(H) × 40mm(L)
High-precision magnetic proximity sensor with over 500,000 cycle durability, featuring dual-color LED status indication (red/green). Designed for harsh industrial environments with anti-vibration structure (10-2000Hz resistance) and surge protection up to 1.5kV. Compatible with ISO6432 standard cylinders.
- Pneumatic cylinder position feedback in assembly lines
- Tooling machine safety interlocks
- Packaging equipment jam detection
- Hydraulic press stroke limit control
- Automated warehouse shuttle positioning
Installation guidelines:
Mount within 3mm of cylinder magnet path, maintain 15mm clearance from
ferrous materials. For optimal performance in high EMI environments,
use twisted pair wiring and ground shielding layer.
| Property | Property Value |
|---|---|
| sku | CS1B4040 |
