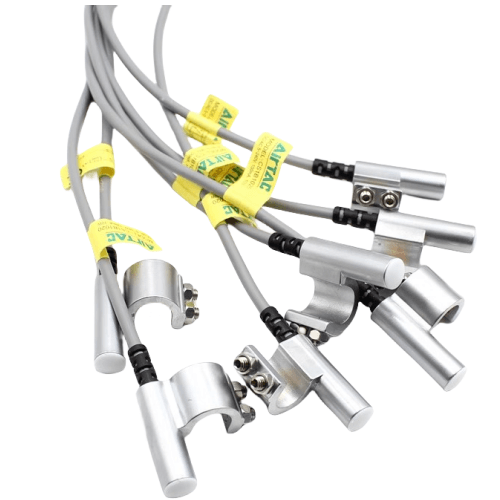

Airtac CS1B Reed Sensor CS1B5030
$15.11
Regular price
$22.61
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CS1B5030
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. The reed sensor operates by utilizing a magnet or electromagnet to generate a magnetic field that actuates the hermetically sealed reed switch within the sensor assembly.
2. This deceptively simple mechanism provides reliable circuit control through contact closure, demonstrating exceptional durability and stability across diverse industrial automation systems and commercial equipment applications.
Alignment tip:
Position sensor within 1mm vertical tolerance relative to cylinder's magnetic piston.
Maintain 20mm clearance from ferrous metals to prevent false triggering.
2. This deceptively simple mechanism provides reliable circuit control through contact closure, demonstrating exceptional durability and stability across diverse industrial automation systems and commercial equipment applications.
AirTAC CS1B5030 Reed Sensor Technical Details
- Model: CS1B5030
- Type: Non-contact magnetic reed sensor
- Operating voltage: DC5-24V (±10% ripple)
- Output type: NPN normally open (NO)
- Detection distance: 5mm ±10%
- Housing material: PA66 (UL94 V-0 flame rating)
- Protection rating: IP67 (dust/water resistant)
- Temperature range: -25℃ to +70℃
- Lead wire length: 2 meters standard (PVC insulated)
- Connector: M8 3-pin quick-disconnect
- Response frequency: ≤100Hz
- Contact capacity: ≤100mA
- Hysteresis: ≤15% of detection distance
- Weight: 32g ±2g
- Dimensions: 18mm(W) × 45mm(L) × 8.5mm(H)
Compact magnetic proximity sensor with gold-plated reed contacts for reliable position detection in pneumatic cylinders. Features reverse polarity protection and surge suppression circuitry. The epoxy-encapsulated design ensures stable performance in high-vibration environments.
Installation & Applications:
- Mounts on standard ISO cylinder slots (8mm groove width)
- Industrial robotic arm position feedback
- Packaging machine cylinder stroke detection
- Injection molding machine safety interlocks
- Conveyor system item counting
Alignment tip:
Position sensor within 1mm vertical tolerance relative to cylinder's magnetic piston.
Maintain 20mm clearance from ferrous metals to prevent false triggering.
