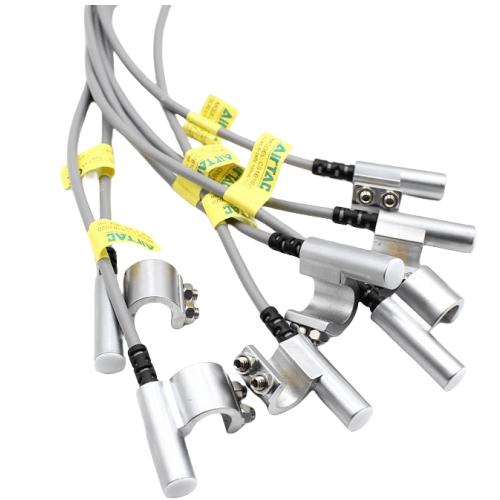

Airtac CS1B Reed Sensor CS1B5050
2. This deceptively simple mechanism provides reliable circuit control through contact closure, demonstrating exceptional durability and stability across diverse industrial automation systems and commercial equipment applications.
AirTAC CS1B5050 Reed Sensor Technical Details
- Model: CS1B5050
- Type: Non-contact magnetic reed switch
- Detection method: Magnetic field actuation
- Operating voltage: DC 12-240V (10% tolerance)
- Current consumption: ≤15mA
- Output configuration: 2-wire, NPN/PNP selectable
- Contact capacity: 200mA max
- Detection distance: 5mm ±10% (from magnet surface)
- Response frequency: ≤3000Hz
- Protection rating: IP67 (dust/water resistant)
- Housing material: Glass-filled nylon (UL94 V-0)
- Operating temp: -25℃ to +70℃ (storage: -40℃ to +80℃)
- Connection type: 2m PVC cable (Ø3.5mm) with IP67 connector
- Weight: 80g ±5% (excluding cable)
- Dimensions: 50mm(L) × 25mm(W) × 15mm(H)
- Certifications: CE, RoHS compliant
Compact magnetic proximity sensor with hermetically sealed reed switch, designed for precise position detection in pneumatic cylinders. Features reverse polarity protection and LED status indication. The oil-resistant housing withstands industrial environments while maintaining stable performance under vibration.
- Cylinder piston position feedback in automation lines
- Tooling machine safety interlocks
- Packaging equipment cycle counting
- Elevator door position detection systems
- Hydraulic press stroke limit control
Installation guidelines:
Mount sensor parallel to cylinder axis with 3-5mm air gap from magnet.
Use shielded cables when near high-frequency equipment. Avoid installing
near permanent magnets or heavy current conductors (>50A).
| Property | Property Value |
|---|---|
| sku | CS1B5050 |
