Airtac CS1G Reed Sensor CS1GC12
2. Despite its straightforward design, this deceptively simple mechanism provides reliable control over electrical circuits across a diverse range of industrial and commercial equipment.

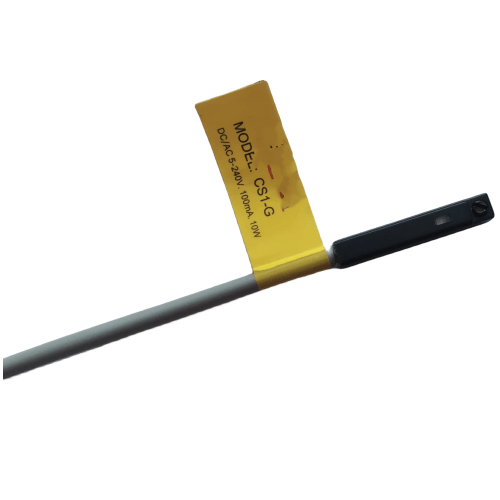

AirTAC CS1G Series Reed Sensor CS1GC12 Technical Specifications
- Model: CS1GC12
- Type: Non-contact magnetic reed sensor
- Output configuration: NPN/PNP selectable (3-wire)
- Supply voltage: DC 12-24V (±10%)
- Current consumption: ≤15mA
- Switching current: ≤200mA
- Response frequency: ≤1kHz
- Hysteresis: ≤15% of sensing distance
- Indication: LED status indicator
- Protection: Reverse polarity & surge protection
- Connection: 2m PVC cable (standard), M8 connector optional
- Housing material: Glass-filled PBT
- Sealing rating: IP67 (IEC 60529)
- Operating temperature: -25℃ to +70℃
- Storage temperature: -40℃ to +85℃
- Weight: 20g ±1g
- Dimensions: 30mm(L) × 15mm(W) × 8mm(H)
Compact magnetic proximity switch designed for pneumatic cylinder position detection. Features dual NPN/PNP output configuration with overcurrent protection, enabling flexible integration with PLCs and control systems. The shock-resistant housing withstands 10-55Hz vibration (1.5mm amplitude) and 100m/s² impact resistance.
- Pneumatic cylinder end position detection
- Automatic door position feedback systems
- Packaging machine actuator monitoring
- Injection molding machine safety interlocks
- Conveyor system object presence detection
Installation guidelines:
Mount within 2mm of cylinder's magnetic piston path. Maintain alignment tolerance
≤±1.5mm laterally. For optimal performance, maintain ambient humidity below 85% RH
(non-condensing) and clean sensing surface regularly.
