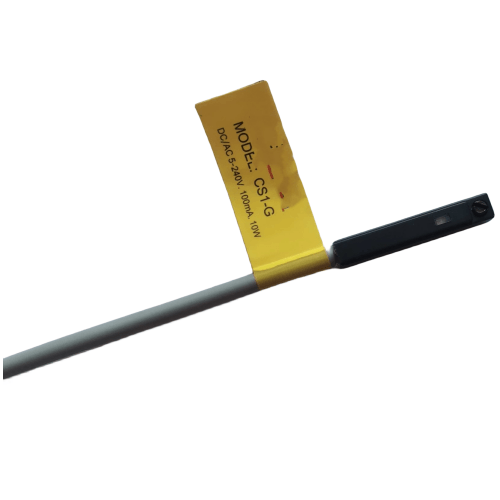

Airtac CS1G Reed Sensor CS1GX030
2. Despite its straightforward design, this deceptively simple mechanism provides reliable control over electrical circuits across a diverse range of industrial and commercial equipment.
AirTAC CS1G Magnetic Reed Sensor CS1GX030 Technical Details
- Model: CS1GX030
- Type: Non-contact magnetic reed sensor
- Sensing distance: 3mm ±10%
- Output configuration: NPN normally open (NO)
- Supply voltage: 10-30V DC (±10% ripple)
- Current consumption: ≤15mA
- Output current: ≤200mA
- Response frequency: ≤1kHz
- Hysteresis: ≤15% of sensing distance
- Protection rating: IP67 (IEC60529)
- Ambient temperature: -25℃ to +70℃
- Housing material: PBT (UL94 V-0)
- Cable specification: 2m PVC cable, 22AWG
- Weight: 80g ±5% (including cable)
- Dimensions: 35mm(L) × 16mm(W) × 8mm(H)
- Mounting torque: 0.5-0.8N·m
Compact magnetic proximity switch with dust/oil-resistant construction, featuring precision snap-action reed contacts. Engineered for cylinder position detection in pneumatic systems, its IP67 protection ensures reliable operation in humid or contaminant-heavy environments. Includes reverse polarity protection and overload current safeguard.
- Pneumatic cylinder end position detection
- Automated assembly line sequencing
- Injection molding machine safety interlocks
- Packaging equipment cycle counting
- CNC tool changer position verification
Installation guidelines:
Mount sensor parallel to cylinder axis with ≤0.5mm alignment tolerance.
Maintain 2× sensing distance clearance from ferrous metals.
For optimal performance, use with AirTAC SDA series cylinders (ø32-100mm).
