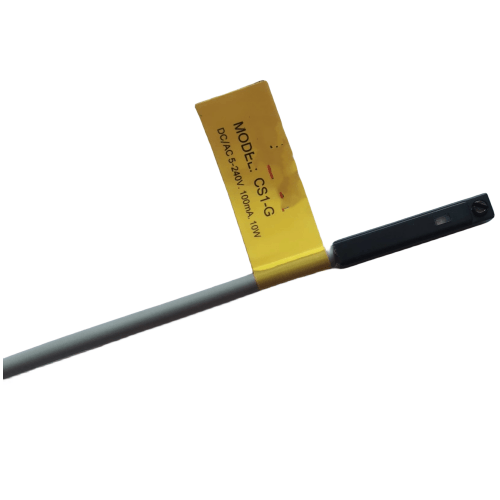

Airtac CS1G Reed Sensor CS1GXC08
2. Despite its straightforward design, this deceptively simple mechanism provides reliable control over electrical circuits across a diverse range of industrial and commercial equipment.
AirTAC CS1G Magnetic Reed Sensor CS1GXC08 Technical Details
- Model: CS1GXC08
- Type: Non-contact magnetic reed sensor
- Output configuration: NPN normally open (NO)
- Operating voltage: DC12-24V ±10%
- Current consumption: ≤15mA
- Switching capacity: ≤200mA
- Response frequency: ≤3000Hz
- Protection class: IP67 (dust/water resistant)
- Housing material: PBT + Glass fiber
- Contact material: AgCdO (silver cadmium oxide)
- Indication: Red LED status indicator
- Operating temperature: -25℃ to +70℃
- Storage temperature: -40℃ to +80℃
- Cable specification: 2m PVC cable, Ø3.5mm
- Housing color: Standard blue (RAL 5015)
- Mechanical life: ≥10⁷ operations
- Weight: 35g ±2g
- Dimensions: 55mm(L) × 8mm(W) × 15mm(H)
Compact magnetic proximity sensor featuring corrosion-resistant construction and precise position detection. The glass-encapsulated reed switch ensures reliable operation in high-vibration environments. Includes reverse polarity protection and overload/short-circuit safeguards. Compatible with ISO cylinder series.
- Pneumatic cylinder position feedback in automation lines
- Conveyor system object detection
- Injection molding machine safety interlocks
- Packaging equipment stroke monitoring
- Hydraulic press limit switching
Mounting guidelines:
Maintain 0.5-2.0mm air gap between sensor and actuator.
For optimal performance, align magnet center with sensor's detection face (±1mm tolerance).
Avoid installation near strong electromagnetic fields.
| Property | Property Value |
|---|---|
| sku | CS1GXC08 |
