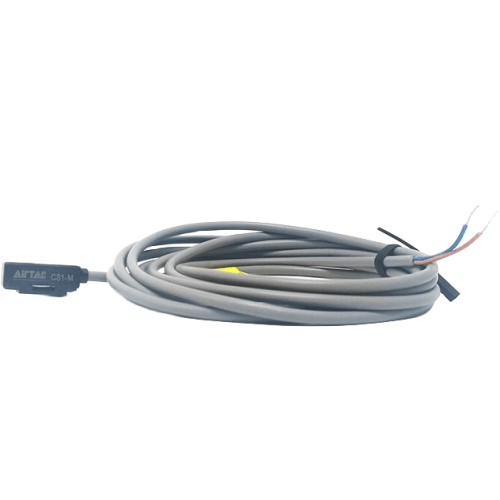

Airtac CS1M Reed Sensor CS1M020S08
$12.32
Regular price
$19.82
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CS1M020S08
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. The reed sensor utilizes magnets or electromagnets to generate a magnetic field that actuates the hermetically sealed reed switch within the sensor assembly.
2. This robust design enables reliable circuit control in diverse industrial automation systems and commercial equipment applications, demonstrating exceptional durability in harsh operating environments while maintaining precise switching characteristics.
Installation guidelines:
Mount parallel to cylinder axis with 0.5-1mm gap between sensor face and magnet carrier.
Use shielded cables for EMI environments. Avoid direct exposure to welding sparks or
strong alternating magnetic fields. Calibrate detection distance using built-in potentiometer.
2. This robust design enables reliable circuit control in diverse industrial automation systems and commercial equipment applications, demonstrating exceptional durability in harsh operating environments while maintaining precise switching characteristics.
AirTAC CS1M020S08 Magnetic Reed Sensor Technical Details
- Model: CS1M020S08
- Type: Non-contact magnetic reed switch
- Operating voltage: 5-240V DC/AC (dual voltage)
- Output type: 2-wire normally open (NO)
- Detection distance: 2-4mm (adjustable)
- Housing material: Glass-filled PBT (UL94 V-0 rated)
- Seal rating: IP67 (dust/water resistant)
- Temperature range: -25℃ to +70℃
- Cable length: 2m standard (customizable 1-10m)
- Connector: M8 3-pin quick-disconnect
- Current capacity: ≤100mA
- Repeat accuracy: ±0.5mm
- Response time: ≤1ms
- Weight: 48g ±2g
- Dimensions: 18mm(W) × 18mm(D) × 76mm(L)
High-precision magnetic proximity sensor with dual-voltage capability and overcurrent protection. Features gold-plated reed contacts for 10 million+ operations, optimized for cylinder position detection in harsh environments. Compatible with ISO cylinder mounting grooves.
Primary Applications:
- Pneumatic cylinder end-position feedback
- Injection molding machine safety interlocks
- Conveyor system object detection
- Food processing equipment (NSF-compliant version available)
- Elevator door position monitoring
Installation guidelines:
Mount parallel to cylinder axis with 0.5-1mm gap between sensor face and magnet carrier.
Use shielded cables for EMI environments. Avoid direct exposure to welding sparks or
strong alternating magnetic fields. Calibrate detection distance using built-in potentiometer.
| Property | Property Value |
|---|---|
| sku | CS1M020S08 |
