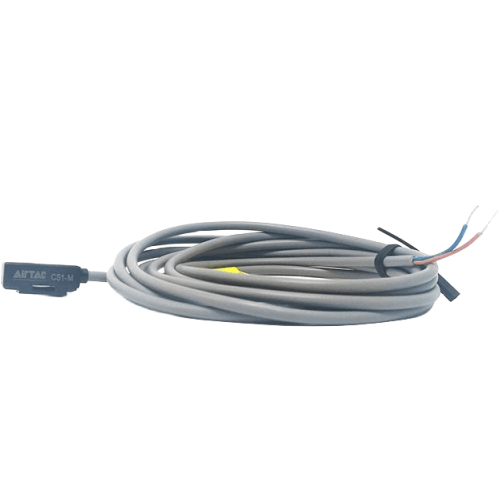

Airtac CS1M Reed Sensor CS1M030S08
2. This robust design enables reliable circuit control in diverse industrial automation systems and commercial equipment applications, demonstrating exceptional durability in harsh operating environments while maintaining precise switching characteristics.
AirTAC CS1M Magnetic Reed Sensor CS1M030S08 Technical Details
- Model: CS1M030S08
- Sensor type: Non-contact magnetic reed switch
- Output configuration: NPN normally open (NO)
- Operating voltage: DC 5-240V (±10%)
- Current consumption: ≤8mA
- Max load current: 200mA
- Response frequency: ≤3000Hz
- Indication: Red LED status light
- Housing material: Glass fiber reinforced PA66
- Contact material: Ruthenium alloy
- Operating temperature: -25℃ to +70℃
- Protection class: IP67 (dust/water resistant)
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Shock resistance: 1000m/s² (3 axes)
- Cable length: 2m standard (PVC shielded cable)
- Weight: 25g ±2g
- Dimensions: 40mm(L) × 15mm(W) × 15mm(H)
High-precision magnetic proximity sensor with military-grade sealing, designed for harsh industrial environments. Features gold-plated contacts for arc suppression and anti-corrosion properties. The reinforced housing withstands hydraulic oil splash and metal particle contamination. Requires compatible magnet (AG-M series recommended) with 2-4mm activation distance.
- Cylinder position feedback in plastic injection molding machines
- Automatic door limit detection in cleanroom facilities
- Tooling position verification in CNC rotary tables
- Safety interlock systems for press brake machinery
- Conveyor belt package counting systems
Installation guidelines:
Mount parallel to cylinder axis with ≤0.5mm alignment tolerance.
Maintain 10mm clearance from ferrous materials. Use M3×8mm stainless
steel screws (0.49-0.69N·m torque). For high-vibration environments,
apply thread-locking compound.
