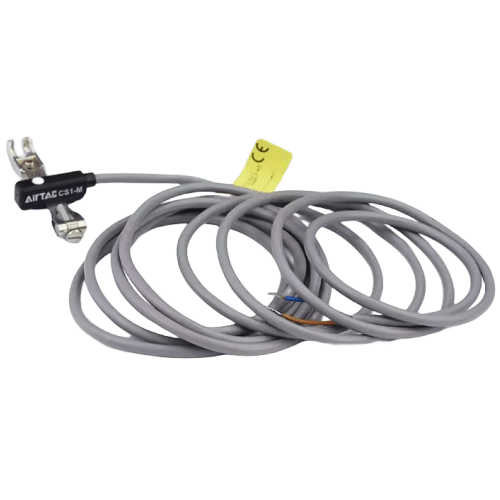

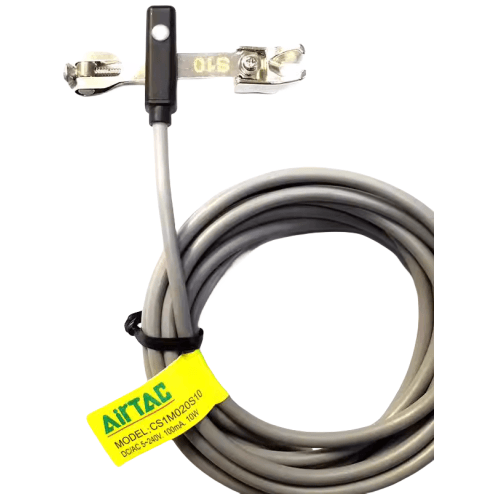

Airtac CS1MC Reed Type Sensor CS1MC08A32
$15.32
Regular price
$22.82
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CS1MC08A32
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. A Reed Sensor operates by utilizing a magnet or electromagnet to generate a magnetic field, which actuates the internal Reed Switch through magnetic field interaction.
2. This deceptively simple mechanism reliably controls electrical circuits across diverse industrial and commercial equipment applications.
Mounting guidance:
Install with M3 screws (max 0.5Nm torque). Maintain ≤0.5mm gap between sensor face and magnetic actuator.
For cylinder mounting, use DIN ISO 12098 standard grooves. Avoid parallel installation with other magnetic sources within 50mm.
2. This deceptively simple mechanism reliably controls electrical circuits across diverse industrial and commercial equipment applications.
AirTAC CS1MC Magnetic Reed Sensor CS1MC08A32 Technical Details
- Model: CS1MC08A32
- Type: Non-contact magnetic reed switch
- Detection distance: 0-8mm (adjustable)
- Output type: 2-wire normally open (NO)
- Voltage range: DC 5-240V (AC compatible)
- Current capacity: ≤100mA
- Response time: ≤1ms
- Housing material: PA66+GF25% (UL94 V-0)
- Contact material: Rhodium-plated contacts
- Protection rating: IP67 (submersible design)
- Temperature range: -25℃ to +85℃
- Cable length: 2m standard (32AWG 4-core shielded)
- Weight: 38±2g (with cable)
- Dimensions: 40mm(L) × 12mm(W) × 8mm(H)
High-precision magnetic proximity sensor with over 500,000 cycle durability. Features a sealed stainless steel blade connector and dual-color LED status indicator (red/green). The optimized Sn value (sensing differential) ensures stable detection even in high-vibration environments.
Typical Installations:
- Pneumatic cylinder position feedback (ISO cylinder grooves)
- Automatic door safety edge detection
- Injection molding machine clamp position sensing
- Conveyor system pallet tracking
- Elevator door interlock verification
Mounting guidance:
Install with M3 screws (max 0.5Nm torque). Maintain ≤0.5mm gap between sensor face and magnetic actuator.
For cylinder mounting, use DIN ISO 12098 standard grooves. Avoid parallel installation with other magnetic sources within 50mm.
| Property | Property Value |
|---|---|
| sku | CS1MC08A32 |
