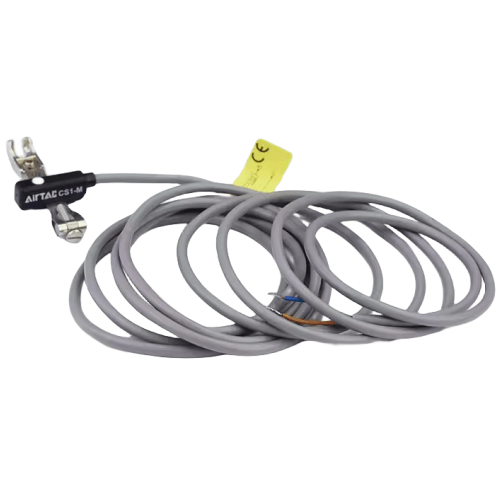

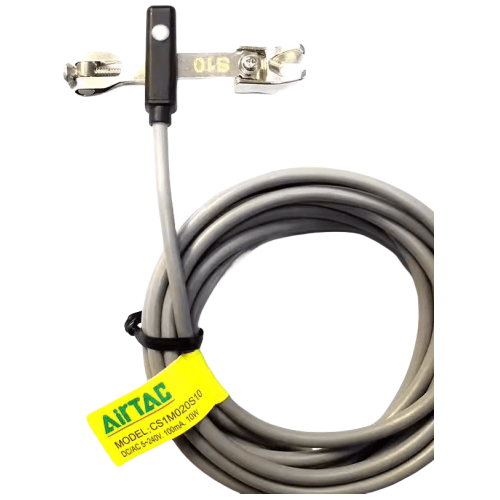

Airtac CS1MX Reed Sensor CS1MX030A40
2. This deceptively simple design ensures reliable circuit control in diverse industrial and commercial equipment applications, demonstrating exceptional switching stability across operational parameters.
AirTAC CS1MX Magnetic Reed Sensor CS1MX030A40 Technical Details
- Model: CS1MX030A40
- Type: Non-contact magnetic proximity sensor (Reed switch)
- Operating voltage: 5-240V DC/AC (90-250V AC for AC models)
- Output type: 2-wire normally open (NO)
- Detection distance: 3±1mm (from magnet surface)
- Housing material: PBT + Glass fiber
- Protection rating: IP67 (IEC60529)
- Temperature range: -25℃ to +70℃
- Lead wire length: 2 meters standard
- Wire gauge: 22 AWG (0.3mm²)
- Connector type: M8 3-pin quick disconnect (optional)
- Repeat accuracy: ≤0.1mm
- Response frequency: ≤200Hz
- Electrical life: 5×10⁷ operations (at rated load)
- Weight: 50g ±3% (excluding cable)
- Dimensions: 30mm(L) × 15mm(W) × 10mm(H)
Compact magnetic proximity switch with hermetically sealed reed contacts, engineered for precise position detection in pneumatic systems. Features overcurrent protection (≤1A) and surge suppression. The reverse polarity protected design ensures stable performance in industrial environments with electromagnetic interference.
- Cylinder piston position feedback in automation lines
- End-of-stroke detection for ISO cylinder series
- Conveyor system object presence verification
- Packaging machine safety interlocks
- Medical equipment door closure sensing
Installation guidance:
Mount parallel to cylinder axis with 0.5-1mm air gap between sensor and magnet.
Avoid metal shavings accumulation - use protective boot (ACS-07 accessory) in
machining environments. Maximum cable bending radius: 25mm.
| Property | Property Value |
|---|---|
| sku | CS1MX030A40 |
