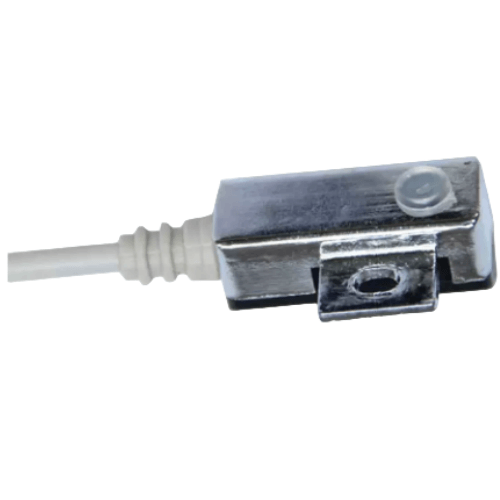

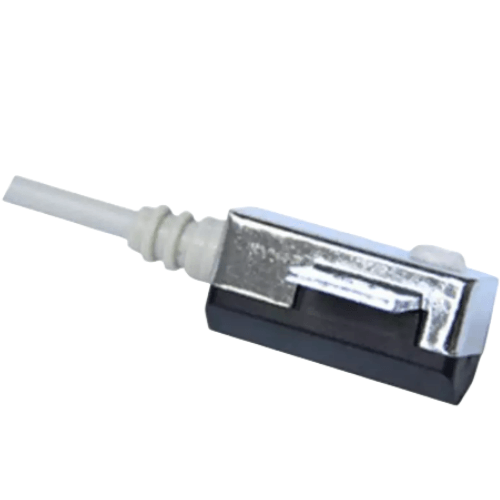

Airtac CS1T Reed Switch Sensor CS1T020A32
$12.32
Regular price
$19.82
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CS1T020A32
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. The reed sensor operates by utilizing a magnet or electromagnet to generate a magnetic field, which actuates/deactuates the hermetically sealed reed switch within the sensor assembly.
2. This deceptively simple mechanism reliably governs circuit control in diverse industrial and commercial applications, demonstrating exceptional durability in harsh operating environments.
Installation guidelines:
Mount parallel to cylinder axis with 1-2mm air gap between sensor face and magnetic piston.
Avoid metallic obstructions within 5mm radius. For optimal performance, calibrate detection
distance after installation using the embedded adjustment screw.
2. This deceptively simple mechanism reliably governs circuit control in diverse industrial and commercial applications, demonstrating exceptional durability in harsh operating environments.
AirTAC CS1T Magnetic Reed Sensor CS1T020A32 Technical Details
- Model: CS1T020A32
- Type: Non-contact magnetic reed switch
- Detection distance: 0-20mm (adjustable)
- Output type: NPN normally open (NO)
- Supply voltage: 5-240V DC/AC (wide range)
- Current consumption: ≤1.5mA
- Load current: ≤200mA
- Response time: ≤1ms
- Hysteresis: ≤15% of detection distance
- Protection: Reverse polarity protection, surge suppression
- Housing material: Nickel-plated brass with PBT housing
- Connection: 2m PVC cable (standard) / M8 connector (optional)
- Temperature range: -25℃ to +80℃
- Protection rating: IP67 (dust/water resistant)
- Weight: 35g ±2g
- Dimensions: 18mm(W) × 55mm(L) × 10mm(H)
Compact magnetic proximity sensor featuring adjustable detection range through built-in potentiometer. Engineered for reliable position feedback in pneumatic systems with shock/vibration resistance. The dual-color LED (red/green) provides visual status indication for easy diagnostics.
Typical Applications:
- Cylinder piston position detection
- Automated conveyor belt systems
- Injection molding machine safety interlocks
- Elevator door position verification
- CNC tooling equipment limit switches
Installation guidelines:
Mount parallel to cylinder axis with 1-2mm air gap between sensor face and magnetic piston.
Avoid metallic obstructions within 5mm radius. For optimal performance, calibrate detection
distance after installation using the embedded adjustment screw.
| Property | Property Value |
|---|---|
| sku | CS1T020A32 |
