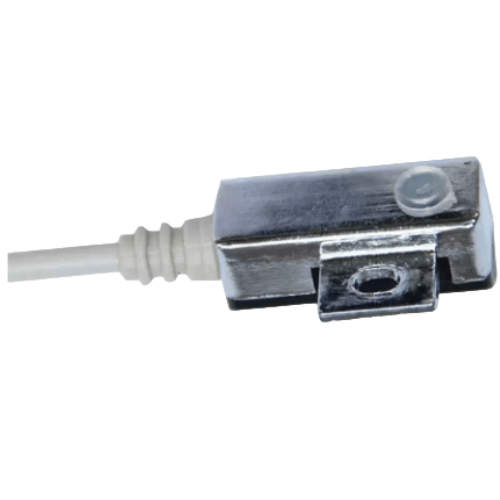

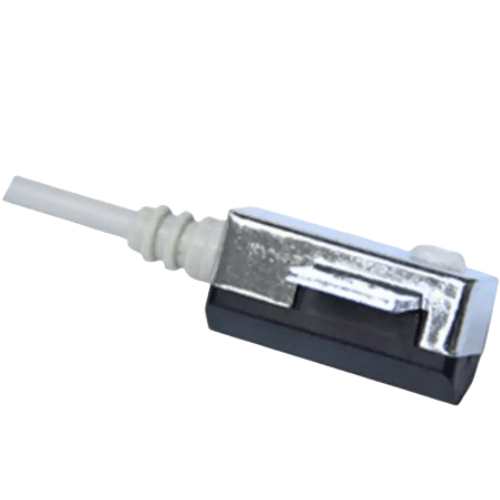

Airtac CS1T Reed Switch Sensor CS1T020A40
2. This deceptively simple mechanism reliably governs circuit control in diverse industrial and commercial applications, demonstrating exceptional durability in harsh operating environments.
AirTAC CS1T Magnetic Reed Sensor CS1T020A40 Specifications
- Model: CS1T020A40
- Type: Non-contact magnetic proximity sensor
- Detection method: Reed switch activation
- Operating voltage: DC 5-30V (±10% ripple)
- Output type: NPN normally open (NO)
- Load current: ≤100mA
- Response frequency: ≤100Hz
- Detection distance: 4±1mm (from magnet surface)
- Hysteresis: ≤15% of detection distance
- Protection rating: IP67 (dust/water resistant)
- Wire specification: 22AWG x 3 cores, 2m length
- Housing material: Glass-filled PBT with nickel-plated brass insert
- Operating temperature: -25℃ to +70℃
- Storage temperature: -40℃ to +80℃
- Vibration resistance: 10-55Hz @1.5mm amplitude
- Shock resistance: 1000m/s² (3 axes)
- Weight: 32g ±2g
- Dimensions: 50mm(L) × 10mm(W) × 10mm(H)
Compact magnetic proximity sensor with reinforced anti-vibration design, featuring reverse polarity protection and surge suppression. The hermetically sealed reed switch ensures reliable position detection in oil-mist environments. Optimized for cylinder position feedback with embedded LED status indicator (red).
- Pneumatic cylinder end-position detection
- Automatic door safety interlocks
- Injection molding machine clamp monitoring
- Conveyor system package counting
- Hydraulic press stroke limit control
Installation note:
Mount using M3 screws with 4.2-4.5Nm torque. Maintain 2×detection distance
between adjacent sensors. Avoid welding/magnetic interference sources within
300mm radius. For cylinder mounting, align sensor centerline with magnet center.
