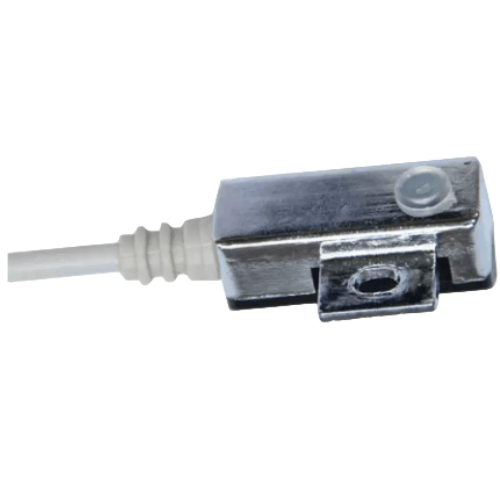

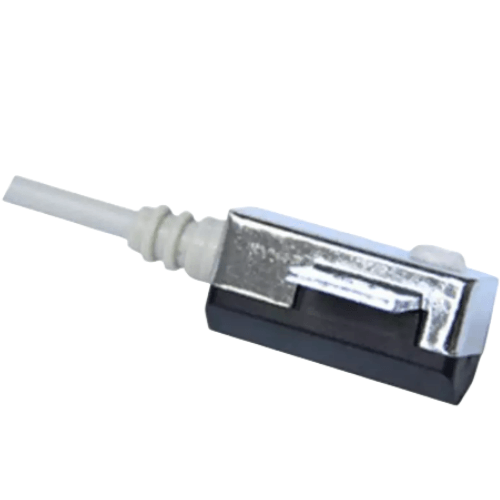

Airtac CS1T Reed Switch Sensor CS1T020A50
2. This deceptively simple mechanism reliably governs circuit control in diverse industrial and commercial applications, demonstrating exceptional durability in harsh operating environments.
AirTAC CS1T Reed Switch Sensor CS1T020A50 Technical Details
- Model: CS1T020A50
- Type: Non-contact magnetic proximity sensor (Reed switch)
- Detection distance: 20mm ±1.5mm
- Output type: PNP normally open (NO)
- Supply voltage: 3-30V DC (24V DC typical)
- Current consumption: ≤15mA
- Cable length: 2m standard (4-core shielded)
- Housing material: PA66 (Nylon) with oil resistance
- Protection rating: IP67 (Dust/water resistant)
- Temperature range: -25℃ to +70℃
- Repeat accuracy: ±0.1mm
- Response frequency: 1kHz max
- Hysteresis: ≤10% of detection distance
- Contact capacity: 100mA max
- Operating life: 100 million operations
- Weight: 32g ±2g
- Dimensions: 76mm(L) × 10mm(W) × 18mm(H)
Compact magnetic proximity sensor with amplified output, designed for precise cylinder position detection in pneumatic systems. Features overcurrent protection and reverse polarity safeguard. The gold-plated reed contacts ensure stable signal transmission even in high-vibration environments. Requires compatible magnetic piston (not included).
- Industrial automation cylinder position feedback
- Packaging machine stroke detection
- Semiconductor manufacturing equipment
- Hydraulic/pneumatic press limit sensing
- Automotive assembly line tooling
- Conveyor system position verification
Installation guide:
Mount parallel to cylinder axis with 0.5-1mm gap between sensor and magnetic ring.
Avoid proximity to strong electromagnetic sources. Use shielded conduit for cable routing
in high-noise environments. Test detection stability at minimum operating voltage.
