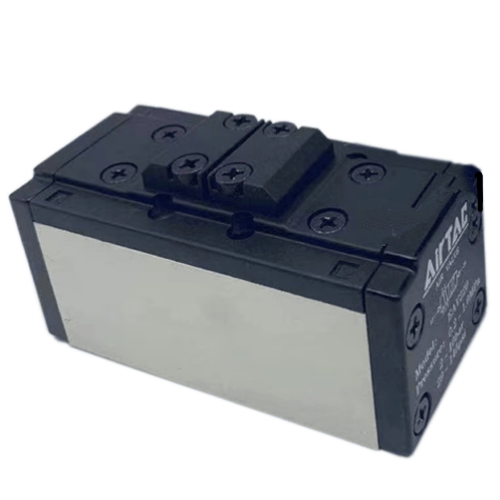

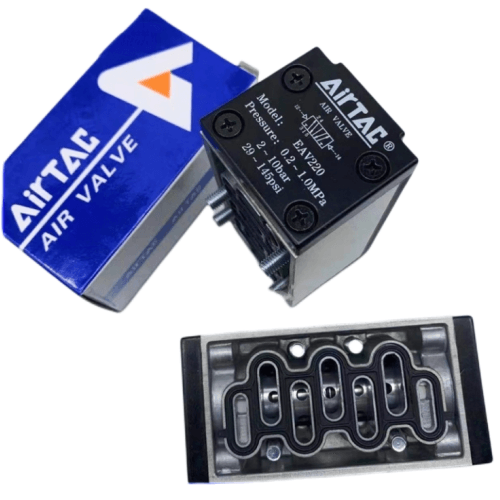

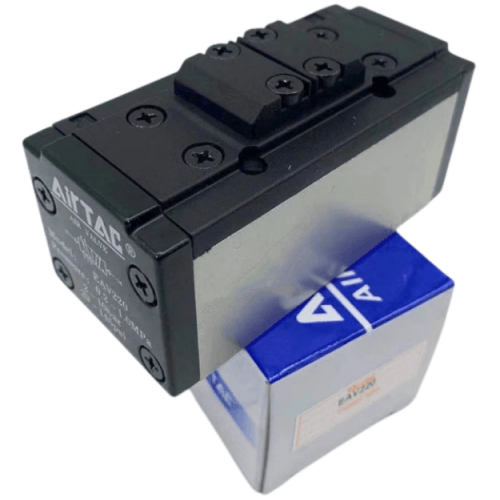

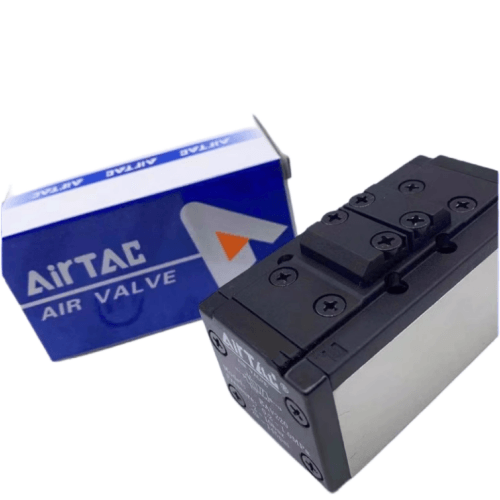

Airtac EAV Standard Pneumatic Control Valve EAV230E
2、Mounting interface compliant with ISO 55991 international standard;
3、Specialized sealing components enable high flow capacity and extended service life;
4、Externally independent pilot air control for non-electrical environments;

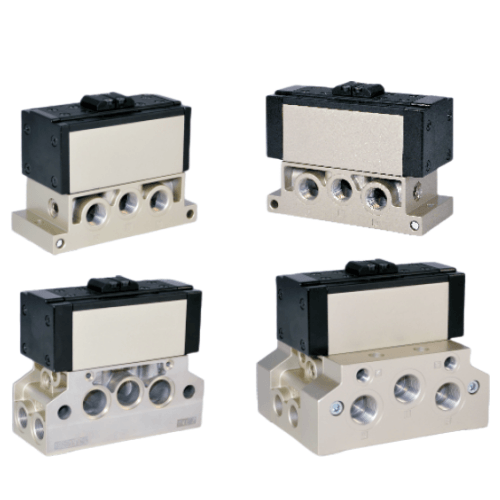

5、Requires valve base compatible with ESV solenoid valves, available in single-unit and multi-station configurations - modular multi-station base allows flexible assembly into any required number of positions;
6、Versatile port configurations and mounting options for enhanced adaptability;
7、Series 200/300/400 bases feature integrated exhaust throttle functionality, eliminating external flow control valves;
8、Dual-air pilot models with independent external control operate effectively at zero pressure or vacuum conditions.
Category: Pneumatic Control Valves | Brand: AirTAC | Series: EAV
AirTAC EAV230E Standard Pneumatic Valve Technical Details
- Model: EAV230E (5/2-way double solenoid)
- Valve type: Pilot-operated with spring return
- Port configuration: 5 ports (P, A, B, R, S) / 2 positions
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage variants: DC12V, DC24V, AC110V(50/60Hz), AC220V(50/60Hz)
- Coil insulation class: Class F (155℃)
- Flow coefficient (Cv): 1.2
- Max operating frequency: 5Hz
- Response time: ≤30ms (at 0.5MPa)
- Seal material: NBR (Nitrile), optional VITON
- Ambient temperature: -5℃ to 70℃ (non-freezing)
- Protection class: IP65 (coil), IP40 (valve body)
- Weight: 450g ±5% (with solenoid)
- Dimensions: 54mm(W) × 40mm(H) × 80mm(L)
- Port thread depth: 12mm (minimum engagement)
- Manual override: Optional push-button type
High-flow directional control valve featuring dual solenoid operation with position memory function. The EAV230E's optimized spool design achieves 30% faster response than previous generation models. Its aluminum alloy body with hard anodizing resists chemical corrosion in harsh environments. Requires 40μm filtered compressed air with lubricator (ISO 8573-1 class 4.4.3).
- Automated assembly line clamping systems
- Plastic injection molding machine ejectors
- CNC tool changers with position hold requirements
- Automotive brake testing equipment
- Food processing pneumatic actuators (VITON seal version)
Installation guidelines:
Mount in vibration-free location using M5 mounting screws (max torque 1.2N·m).
Maintain ≥15mm clearance below valve for tubing connections.
Use surge suppressor for DC coils in high-frequency applications.
| Property | Property Value |
|---|---|
| sku | EAV230E |
| Pneumatic Control Type | Three-position double air-piloted center exhaust type |
