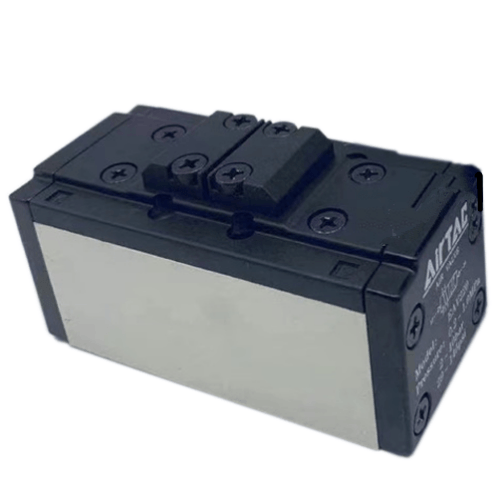

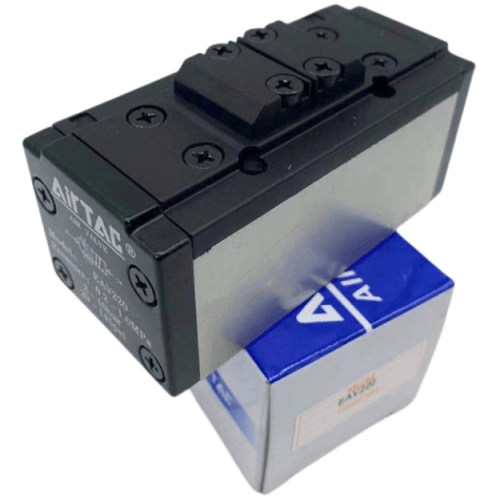

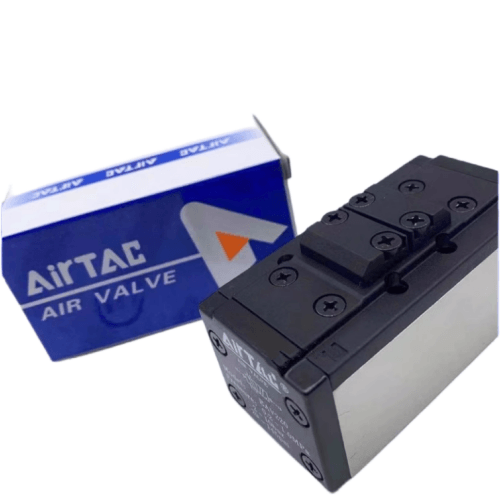

Airtac EAV Standard Pneumatic Control Valve EAV330P
2、Mounting interface compliant with ISO 55991 international standard;
3、Specialized sealing components enable high flow capacity and extended service life;
4、Externally independent pilot air control for non-electrical environments;

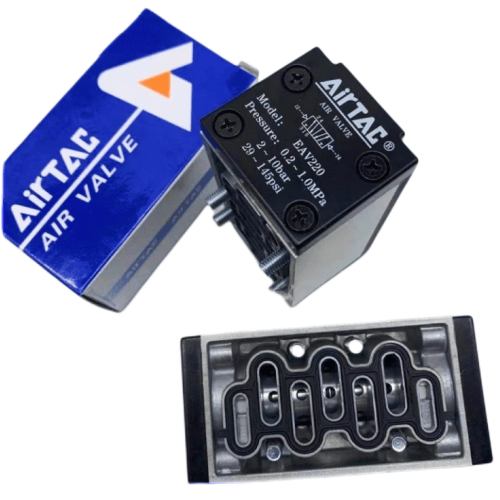

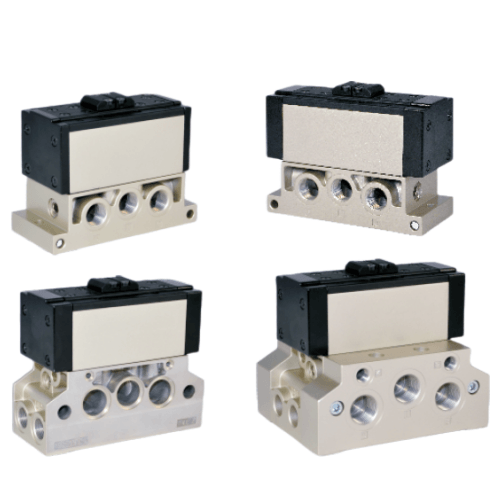

5、Requires valve base compatible with ESV solenoid valves, available in single-unit and multi-station configurations - modular multi-station base allows flexible assembly into any required number of positions;
6、Versatile port configurations and mounting options for enhanced adaptability;
7、Series 200/300/400 bases feature integrated exhaust throttle functionality, eliminating external flow control valves;
8、Dual-air pilot models with independent external control operate effectively at zero pressure or vacuum conditions.
Category: Pneumatic Control Valves | Brand: AirTAC | Series: EAV
AirTAC EAV330P Standard Pneumatic Control Valve Specifications
- Model: EAV330P
- Type: 5/2-way pilot-operated (double solenoid)
- Port size: 1/4" NPT (G1/8 optional)
- Operating pressure range: 0.1–1.0 MPa
- Control signal: 0.15–0.8 MPa pilot pressure
- Flow coefficient (Cv): 1.8
- Effective sectional area: 18 mm²
- Weight: 850g ±5%
- Dimensions: 80mm(L) × 45mm(W) × 45mm(H)
- Body material: Die-cast aluminum alloy (anodized)
- Seal material: NBR (nitrile rubber)
- Temperature range: -10℃ to 80℃
- Response time: ≤50ms
- Port thread depth: 12mm
- Protection rating: IP40
High-flow directional control valve with dual solenoid activation, featuring low power consumption and dust-resistant construction. The optimized spool design ensures smooth switching even under pressure fluctuations. Requires 5μm filtered compressed air with ISO 8573-1:2010 Class 3.2.4 air quality standards.
- Automated production line cylinder sequencing
- Plastic injection molding machine clamp control
- Material handling system actuators
- Textile machinery pneumatic circuits
- Automotive assembly jig operation
Installation guidelines:
Mount with vibration-damping brackets in high-frequency operation environments.
Lubricate pilot ports with ISO VG32 pneumatic oil if using non-lubricated air.
Allow 15mm minimum clearance below valve for maintenance access.
| Property | Property Value |
|---|---|
| sku | EAV330P |
| Pneumatic Control Type | Three-position double pilot operated center pressure type |
