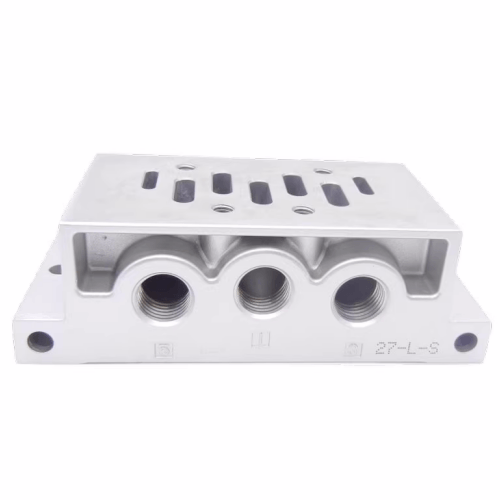

Airtac ESV-3 End Plate ESV303M
$33.72
Regular price
$41.22
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
ESV303M
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Sleek appearance and compact structure;
2. Mounting interface dimensions compliant with ISO 5599-1 international standards;
3. Incorporates dedicated sealing components for superior flow capacity and extended service life;
4. 200/300/400 Series enable interconversion between internal pilot, external pilot, and pneumatic control configurations through directional adjustment of sealing elements;
5. Requires base mounting with options of single-unit or modular multi-unit bases, the latter allowing flexible combinations into any required number of stations;
6. Bases feature multiple pneumatic connection interfaces and installation configurations for enhanced adaptability;
7. 200/300/400 Series bases integrate exhaust throttling mechanisms, eliminating need for external flow control valves.
Category: End Plates | Brand: AirTAC | Series: ESV-3
Installation note:
Apply 0.5-0.8 N·m torque during assembly. Use thread sealant on port connections.
For multi-plate stacking, maintain alignment within ±0.2mm tolerance.
2. Mounting interface dimensions compliant with ISO 5599-1 international standards;
3. Incorporates dedicated sealing components for superior flow capacity and extended service life;
4. 200/300/400 Series enable interconversion between internal pilot, external pilot, and pneumatic control configurations through directional adjustment of sealing elements;
5. Requires base mounting with options of single-unit or modular multi-unit bases, the latter allowing flexible combinations into any required number of stations;
6. Bases feature multiple pneumatic connection interfaces and installation configurations for enhanced adaptability;
7. 200/300/400 Series bases integrate exhaust throttling mechanisms, eliminating need for external flow control valves.
Category: End Plates | Brand: AirTAC | Series: ESV-3
AirTAC ESV-3 End Plate ESV303M Technical Specifications
- Model: ESV303M (ESV-3 Series End Plate)
- Material: Aluminum alloy ADC12
- Surface treatment: Anodized (natural color)
- Compatible valve models: ESV-3 series solenoid valves
- Mounting pattern: ISO 15407-1 standard
- Port thread size: G1/8 (BSPP)
- Seal material: NBR (Nitrile rubber)
- Operating temperature: -20℃ to 80℃
- Max pressure rating: 1.0 MPa
- Weight: 0.28 kg ±5%
- Dimensions: 62mm(L) × 34mm(W) × 18mm(H)
- Mounting hole spacing: 50mm center-to-center
- Surface hardness: HV 120±15
Precision-machined end plate designed for ESV-3 series solenoid valves, featuring anti-corrosion anodization and leak-proof NBR seals. Provides structural stability and pneumatic integrity in multi-valve assemblies. Includes integrated air passage channels for manifold configurations.
Typical Applications:
- Modular valve banks in automated assembly lines
- CNC machine tool pneumatic systems
- Packaging machinery manifold blocks
- Semiconductor manufacturing equipment
- Robotic end-effector control units
Installation note:
Apply 0.5-0.8 N·m torque during assembly. Use thread sealant on port connections.
For multi-plate stacking, maintain alignment within ±0.2mm tolerance.
