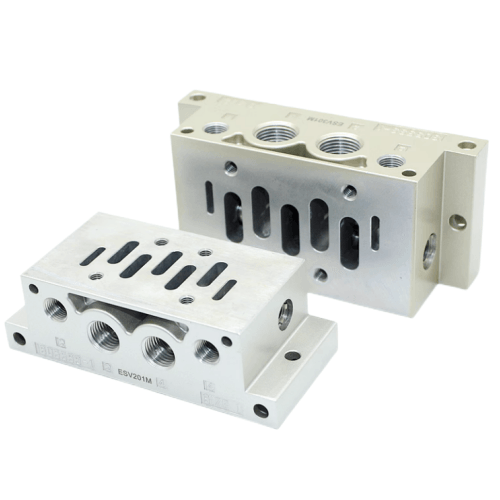

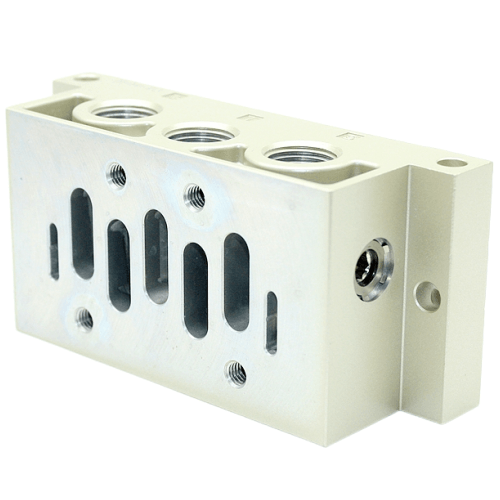

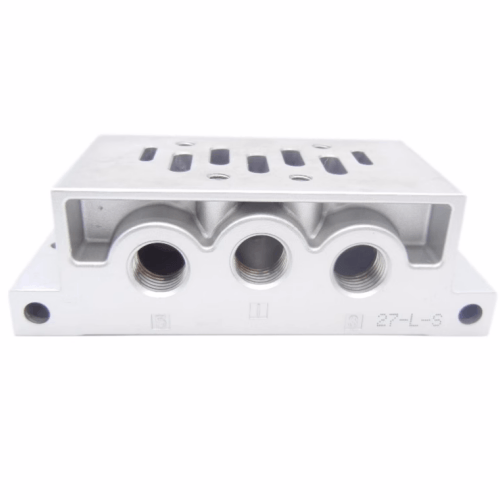

Airtac ESV-M Base ESV602MB
$83.71
Regular price
$91.21
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
ESV602MB
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
ESV-M Base Features:
1. Sleek appearance with compact structural design;
2. Mounting dimensions on connection surface compliant with ISO 5599-1 international standard;
3. Equipped with dedicated sealing components for enhanced flow capacity and extended service life;
4. 200/300/400 series enable conversion between internal pilot, external pilot, and pneumatic control configurations through directional adjustment of seal assemblies;
5. Valve body requires base mounting, available in single-unit or modular multi-unit formats (multi-unit base allows flexible combination into arbitrary numbers);
6. Multiple air supply connection configurations and mounting options for optimized system integration;
7. 200/300/400 series bases integrate exhaust throttling functionality, eliminating need for external speed controllers.
Category: Solenoid Valve Base | Brand: AIRTAC | Series: ESV-M
Installation note:
Use torque-controlled screwdriver (0.6-0.8 N·m) for manifold stacking.
Apply silicone-free grease to sealing surfaces before assembly.
Maximum recommended stack height: 6 units.
2. Mounting dimensions on connection surface compliant with ISO 5599-1 international standard;
3. Equipped with dedicated sealing components for enhanced flow capacity and extended service life;
4. 200/300/400 series enable conversion between internal pilot, external pilot, and pneumatic control configurations through directional adjustment of seal assemblies;
5. Valve body requires base mounting, available in single-unit or modular multi-unit formats (multi-unit base allows flexible combination into arbitrary numbers);
6. Multiple air supply connection configurations and mounting options for optimized system integration;
7. 200/300/400 series bases integrate exhaust throttling functionality, eliminating need for external speed controllers.
Category: Solenoid Valve Base | Brand: AIRTAC | Series: ESV-M
AirTAC ESV-M Base ESV602MB Technical Specifications
- Model: ESV602MB
- Type: Universal mounting base for ESV-M series solenoid valves
- Material: Reinforced black PBT + 30% glass fiber
- Compatible Valves: ESV-M02~ESV-M06 series
- Port Size: 1/8" NPT (G1/8 optional)
- Operating Pressure: 0.05–1.0 MPa
- Mounting Style: ISO 15407-1 compliant sub-base
- Weight: 320g ±5g
- Dimensions: 60mm(L) × 42mm(W) × 28mm(H)
- Temperature Range: -20℃ to 80℃ (non-condensing)
- Surface Treatment: Chemical-resistant powder coating
- Protection Rating: IP54 (when assembled with valve)
Modular base unit enabling multi-valve manifold configurations through stacking. Features integrated O-ring grooves (NBR 70° Shore) for leak-proof connections and numbered port indicators for simplified piping. Includes M5 threaded mounting holes with vibration-resistant washers.
Typical Applications:
- Centralized control systems in CNC machinery
- Modular pneumatic stations for automotive assembly lines
- Multi-circuit packaging equipment with space constraints
- Laboratory analytical instrument gas distribution
- Semiconductor manufacturing vacuum/pressure systems
Installation note:
Use torque-controlled screwdriver (0.6-0.8 N·m) for manifold stacking.
Apply silicone-free grease to sealing surfaces before assembly.
Maximum recommended stack height: 6 units.
| Property | Property Value |
|---|---|
| sku | ESV602MB |
| Port Size | BSPT 3/4 |
