Airtac F-M-U Rod End Joint Assembly Kit F-M26X150U

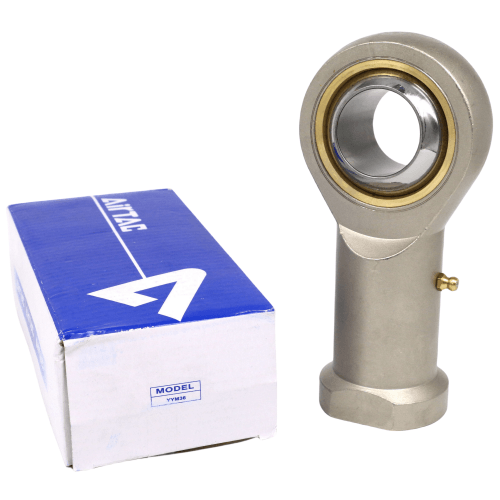

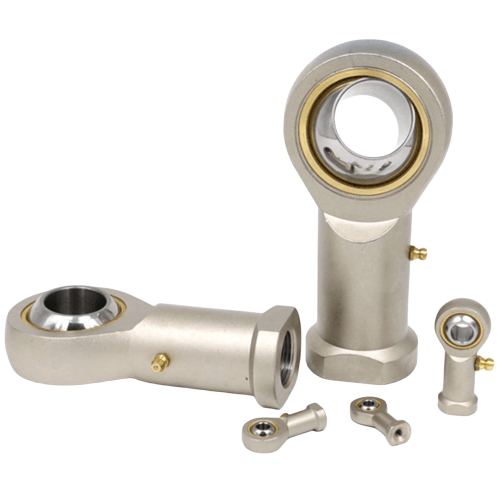

AirTAC F-M-U Series Fish Eye Joint Assembly F-M26X150U Technical Details
- Full Model: F-M26X150U
- Type: Heavy-duty adjustable rod end bearing with U-shaped fork
- Thread Specification: M26×1.5 male thread (ISO metric standard)
- Rod Diameter: Ø26±0.1mm (precision ground surface)
- Stroke Length: 150mm (effective pivot travel)
- Material: Carbon steel with zinc-nickel plating (base) / SCM435 alloy steel (shaft)
- Bearing Type: Maintenance-free polymer-lined spherical bearing
- Working Temperature: -30℃ to +120℃ (continuous operation)
- Radial Load Capacity: 12,500N static / 8,200N dynamic
- Axial Load Capacity: 6,800N (compression/tension)
- Swivel Angle: ±25° maximum deflection angle
- Mounting Hole: 12mm diameter through-hole (M12 bolt compatible)
- Weight: 840g ±2% (including all hardware)
- Dimensions: 150mm(L) × 52mm(W) × 38mm(H) (shaft end to fork tip)
- Corrosion Resistance: 500hr salt spray test passed
- Lubrication: Pre-packed with Molykote PG-65 grease
Industrial-grade pivot joint featuring a hardened steel spherical bearing core encapsulated in glass-fiber reinforced PA66 housing. The robust zinc-plated construction withstands heavy side loads while maintaining smooth articulation. Includes integrated lock nuts and crush-proof washers for vibration resistance.
- Hydraulic cylinder rod end connections in construction machinery
- Parallel guidance systems for industrial press brakes
- Articulated linkages in agricultural harvesters
- Robotic arm wrist joint load transfer
- Conveyor belt tension adjustment mechanisms
Installation protocol:
Torque M26 nut to 180-220N·m using cross pattern tightening.
Align movement axis within ±3° of bearing centerline during assembly.
Re-grease every 2,000 operating hours through Zerk fitting.
Avoid axial over-compression: Maintain minimum 3mm gap between fork arms under full compression. Not suitable for continuous rotational motion exceeding 15 RPM.
| Property | Property Value |
|---|---|
| sku | F-M26X150U |
| Thread Pitch | 1.5mm |
| Thread Specification | M26 |
