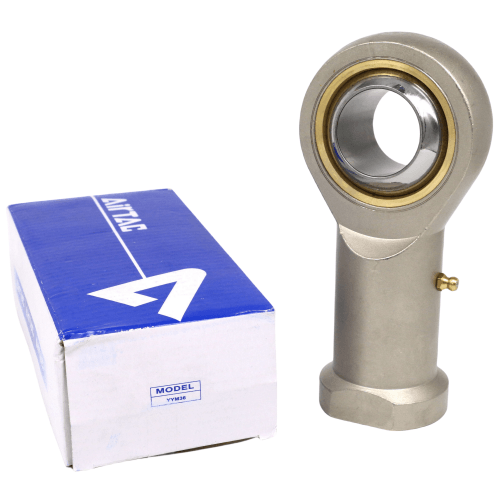

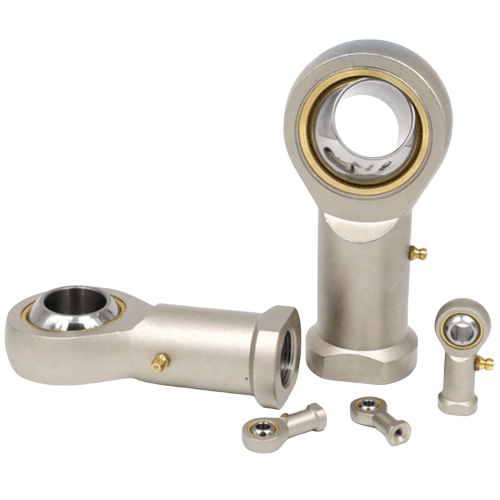

Airtac F-M-U Rod End Joint Assembly Kit F-M6X100U
AirTAC F-M-U Series F-M6X100U Rod End Bearing Kit Specifications
- Model: F-M6X100U
- Thread specification: M6×1.0 (Metric fine thread)
- Total length: 100±0.5mm
- Effective thread length: 25mm
- Ball diameter: Φ8mm
- Rotation angle: ±15°
- Max radial load: 980N (at static condition)
- Max axial load: 490N
- Material: Carbon steel (SCM435 equivalent)
- Surface treatment: Black oxide coating (H.V. 300±50)
- Operating temperature: -30℃ to +120℃
- Weight: 82g ±3%
- Dimensions: 100mm(L) × 18mm(W) × 26mm(H)
- Lubrication: Pre-packed with Molykote 33M grease
- Included components: Hex nut (M6), flat washer, split pin
Precision-aligned rod end bearing with corrosion-resistant treatment, featuring cold-forged construction for enhanced structural integrity. The self-lubricating brass bushing ensures smooth articulation while minimizing wear. Designed for applications requiring angular compensation and vibration dampening in linear motion systems.
- Pneumatic cylinder linkage systems
- 3D printer gantry alignment mechanisms
- Industrial robotic wrist joints
- Conveyor belt tensioning assemblies
- Automotive throttle linkage systems
Installation guidance:
Apply 12-15N·m torque during assembly. Perform periodic lubrication every
500,000 cycles using lithium-based grease. Avoid over-rotation beyond
specified angles to prevent bushing deformation.
| Property | Property Value |
|---|---|
| sku | F-M6X100U |
| Thread Pitch | <1.0mm> |
| Thread Specification | M6 |
