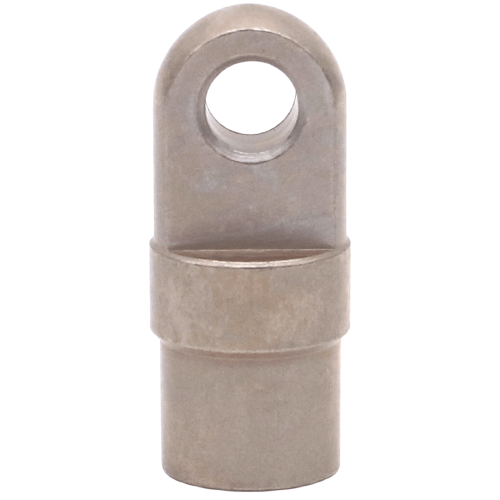

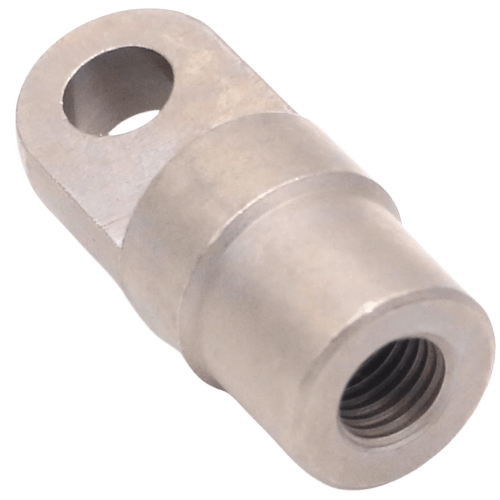

Airtac F-MF-I Adapter Assembly Kit F-MF40I
Brand: AIRTAC
Series: F-MF-I
Category: Pneumatic Automation Components Professional Description: The AIRTAC F-MF-I Series represents precision-engineered Type I pneumatic cylinder connectors designed for industrial automation systems. This complete fitting solution features standardized thread specifications and optimized flow path architecture, ensuring leak-free connections in pneumatic control circuits. The kit includes factory-assembled components with corrosion-resistant brass construction and BSPP/BSPT/NPT thread compatibility. Engineered for 0-1.0 MPa operating pressure range, these fittings demonstrate exceptional vibration resistance and maintain consistent performance across -5°C to 60°C operational temperatures. Ideal for pneumatic cylinder port connections in automated machinery, the series complies with ISO 6432 standards while incorporating AIRTAC's proprietary sealing technology for enhanced durability in high-cycle applications.
AirTAC F-MF-I Series Fitting Kit F-MF40I Technical Details
- Model Code: F-MF40I
- Series: F-MF-I (Industrial Quick Connectors)
- Body Material: Nickel-plated brass (ISO 1179 compliant)
- Seal Material: HNBR (Hydrogenated Nitrile) with PTFE coating
- Port Size: 1/4" BSPP (G1/4 parallel thread)
- Operating Pressure: 0.5-1.6 MPa (72.5-232 psi)
- Burst Pressure: ≥4.8 MPa (696 psi)
- Temperature Range: -20℃ to 80℃ (-4°F to 176°F)
- Flow Rate: 2500 NL/min (ANR, ΔP=0.1MPa)
- Thread Engagement: 6 full turns for secure sealing
- Weight: 220g ±5g (including packaging)
- Dimensions: 50mm(L) × 30mm(W) × 25mm(H)
- Surface Treatment: Electroless nickel plating (8-12μm thickness)
- Compatible Fluids: Compressed air, inert gases (N₂/CO₂)
- IP Rating: IP40 (protected against 1mm particles)
High-flow industrial quick-connect coupling set featuring triple-seal technology for leak-free pneumatic connections. The 45° push-to-lock mechanism enables single-hand operation with tactile engagement feedback. Includes integrated dust caps with retention chains and an O-ring lubrication packet (3g silicone grease).
- High-cycle pneumatic tool connections in automotive assembly lines
- Modular equipment interfaces for semiconductor FOUP handling
- Mobile hydraulic test bench quick-disconnect points
- Packaging line air knife supply connections
- Plastic injection molding machine auxiliary air lines
Installation protocol:
Apply 0.3-0.5Nm torque during assembly. Replace O-rings every 50,000 cycles or
12 months (whichever comes first). Use thread sealant only on male ports,
avoiding contact with sealing surfaces.
Compatibility note:
Not recommended for acetylene or oxygen systems. Avoid prolonged exposure to
phosphate ester-based lubricants which may degrade HNBR seals.
| Property | Property Value |
|---|---|
| sku | F-MF40I |
