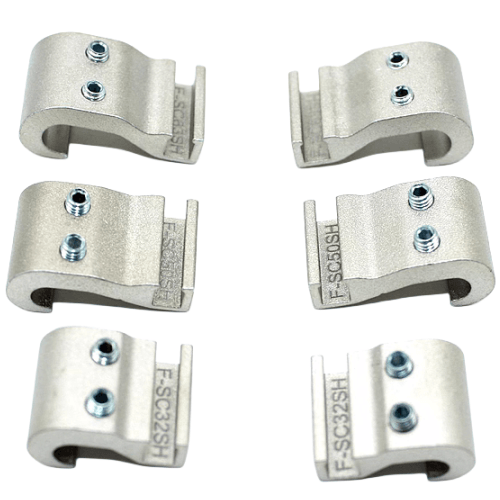

Airtac F-SC-H Sensor Mounting Bracket Assembly F-SC32H
AirTAC F-SC-H Series Sensor Mounting Bracket Kit F-SC32H Technical Details
- Model: F-SC32H (Complete Kit)
- Material: Anodized aluminum alloy (base) + Stainless steel (clamping components)
- Compatible Sensors: 18-32mm cylindrical sensors
- Mounting Type: T-slot rail (8-15mm width) or direct screw mounting
- Adjustment Range: ±5° vertical tilt adjustment
- Clamping Force: 25N (max) with anti-vibration lock
- Weight: 184g ±3g (complete assembly)
- Dimensions: 68mm(L) × 42mm(W) × 34mm(H)
- Operating Temperature: -25℃ to +85℃
- Surface Hardness: HV400-450 (mounting surface)
- Protection Rating: IP54 (assembled with sensor)
- Mounting Screws: M4×12mm stainless steel (included x2)
- Tool Requirements: 2.5mm hex key (included)
- Color: Matte black (RAL 9005) with yellow adjustment indicators
Precision alignment bracket system featuring micro-adjustment capability for industrial sensors. The dual-locking mechanism combines a quick-release lever with fine-thread tensioning, enabling secure positioning while maintaining 0.2mm repeatability. Includes integrated cable management clips and wear-resistant contact surfaces.
- Photoelectric sensor mounting on automated conveyor lines
- Proximity switch positioning in robotic welding cells
- Linear encoder installation on CNC guideways
- Safety curtain alignment in press machinery
- IoT sensor arrays in smart warehouse systems
Mounting protocol:
Always pre-tension adjustment screws to 0.8N·m before final locking.
Use included shim washers when mounting on uneven surfaces exceeding 0.5mm deviation.
- For high-vibration environments: Apply thread-locker to M4 screws
- When using inductive sensors: Maintain 2mm clearance from metal surfaces
- In washdown areas: Apply silicone sealant to cable entry points
| Property | Property Value |
|---|---|
| sku | F-SC32H |
