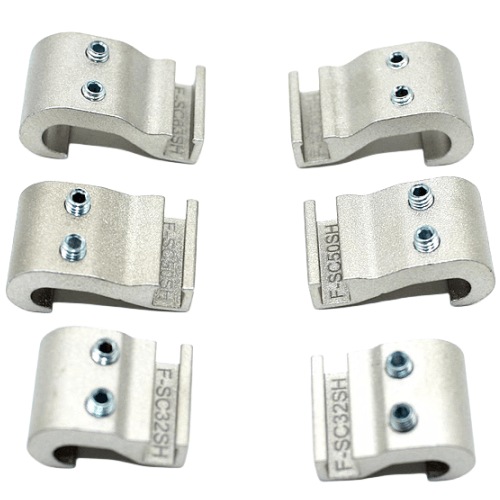

Airtac F-SC-H Sensor Mounting Bracket Assembly F-SC32SH
AirTAC F-SC-H Series Sensor Bracket Kit F-SC32SH Technical Details
- Model: F-SC32SH (Complete Kit)
- Material: Aluminum alloy 6063-T5 with anodized treatment
- Compatible sensor types: M8/M12 inductive & photoelectric sensors
- Mounting style: Dual-bolt horizontal/vertical fixation
- Adjustment range: ±15° swivel with 360° rotational capability
- Mounting hole spacing: 32mm (±0.2mm tolerance)
- Thread specifications: M5×0.8 mounting screws included
- Surface hardness: HV 80-100 (anodized layer)
- Operating temperature: -40℃ to +120℃
- Vibration resistance: 10-55Hz, 1.5mm amplitude max
- Weight: 228g ±5g (including all hardware)
- Dimensions: 68mm(L) × 42mm(W) × 34mm(H)
- IP rating: IP40 (protected against tool-sized objects >1mm)
- Package contents: 1x bracket body, 2x M5×25 hex bolts, 2x M5 flange nuts, 4x rubber dampers
Precision-engineered sensor mounting solution featuring multi-axis adjustability for fine-tuning detection alignment. The hardened anodized surface resists mechanical wear and chemical corrosion, while integrated vibration dampers ensure stable operation in high-shock environments. Compatible with all major brand sensors using standard M8/M12 form factors.
- CNC machine tool position verification systems
- Automated conveyor belt object detection stations
- Robotic arm end-effector alignment feedback
- Packaging line product counting mechanisms
- AGV (Automated Guided Vehicle) proximity sensing
Installation protocol:
Apply 0.4-0.6N·m torque during bolt tightening. Use included nylon washers
when mounting on painted surfaces. Perform alignment calibration after
thermal stabilization of machinery.
| Property | Property Value |
|---|---|
| sku | F-SC32SH |
