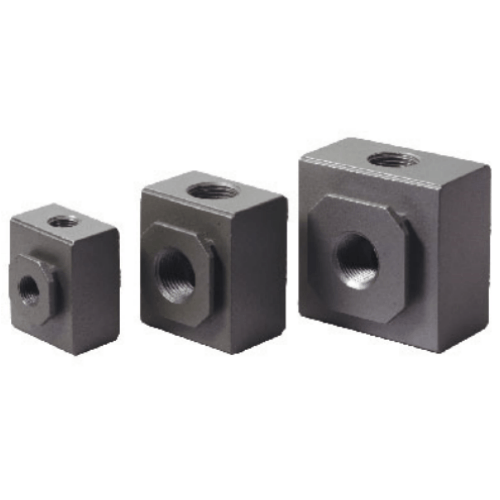

Airtac GA Manifold Block GA30008T
2. Compatible with multiple mounting brackets for flexible configuration with regulators and lubricators. Available bracket types: T-style, L-style, U-style.
Category: Air Distribution Block | Brand: AIRTAC | Series: GA
AirTAC GA30008T Modular Manifold Specifications
- Model: GA30008T
- Type: 5-station modular air distribution block
- Port size: 1/4" NPT (G1/4 optional)
- Operating pressure: 0.2–0.8 MPa (29–116 PSI)
- Max flow rate: 1,000 L/min (ANR)
- Material: Anodized aluminum alloy (body), NBR seals
- Temperature range: -5℃ to 80℃ (with NBR seals)
- Surface hardness: HV0.3 ≥ 15°
- Weight: 680g ±2%
- Dimensions: 80mm(L) × 40mm(W) × 40mm(H)
- Mounting: ISO 15407-1 compliant pattern
- Port pitch: 20mm (between valve stations)
Multi-channel pneumatic distribution block featuring modular design for flexible valve mounting configurations. Precision-machined internal passages minimize pressure drop (ΔP ≤ 0.02MPa at max flow). Gold-plated sealing surfaces ensure long-term leak-free operation. Compatible with most ISO 5599/1 valves.
- Multi-axis pneumatic actuator control systems
- Semiconductor wafer handling equipment
- Automated packaging line manifold stations
- Plastic injection molding machine air circuits
- Automotive assembly line tooling
Installation notes:1. Apply 3-5Nm torque during valve mounting
2. Use PTFE tape on NPT threads with clockwise wrap direction
3. Maximum recommended stacking: 3 blocks in series
4. Requires 5μm filtered air (ISO 8573-1:2010 Class 4)
| Property | Property Value |
|---|---|
| sku | GA30008T |
| Port Size | PT1/4 |
