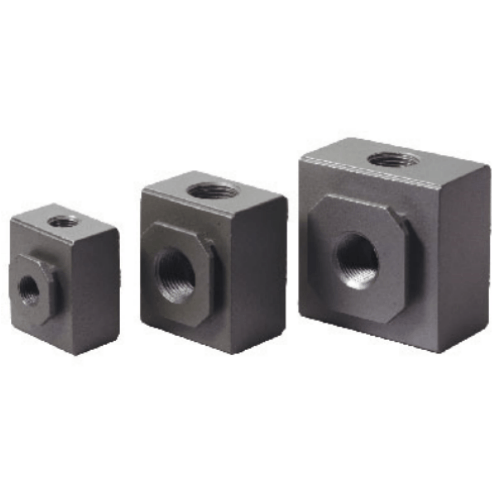

Airtac GA Manifold Block GA30010
2. Compatible with multiple mounting brackets for flexible configuration with regulators and lubricators. Available bracket types: T-style, L-style, U-style.
Category: Air Distribution Block | Brand: AIRTAC | Series: GA
AirTAC GA Series Air Distribution Block GA30010 Specifications
- Model: GA30010
- Type: Multi-port modular air distribution block
- Port configuration: 3×M5 (control ports), 1×PT1/4 (input), 2×PT1/4 (output)
- Thread standard: Metric/PT/NPT optional
- Operating pressure: 0.2–0.8 MPa (29–116 psi)
- Max flow rate: 350 NL/min
- Material: Aluminum alloy 6063-T5
- Surface treatment: Anodized finish (10μm)
- Seal material: NBR (Nitrile rubber)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 450g ±5%
- Dimensions: 80mm(L) × 40mm(W) × 34mm(H)
- Mounting: ISO 15407-1 compliant rail mount
- Pressure drop: ≤0.02 MPa at 0.5 MPa supply
High-density air distribution block featuring precision-machined flow channels for minimized pressure loss. The T-slot design enables modular expansion with other GA series components. Ideal for centralized pneumatic control systems requiring multi-branch air distribution with compact footprint. Compatible with ISO 8573-1 class 3 compressed air (max particle size 5μm).
- Multi-axis pneumatic actuator systems
- Automated assembly line tooling stations
- Packaging machine clamp circuits
- Industrial robot end-effector air supply
- PLC-controlled pneumatic logic systems
Installation note:
Apply 2-3 wraps of PTFE tape on input port threads. Use torque wrench for M5 screws
(max 1.2N·m) to prevent aluminum thread stripping. Install filter regulator upstream
for optimal performance.
- Stackable design: Up to 6 units can be combined horizontally
- End plate options: GA-EP (standard) or GA-EPL (with locking mechanism)
- Port conversion kits available for UNF/JIS standards
| Property | Property Value |
|---|---|
| sku | GA30010 |
| Port Size | PT3/8 |
