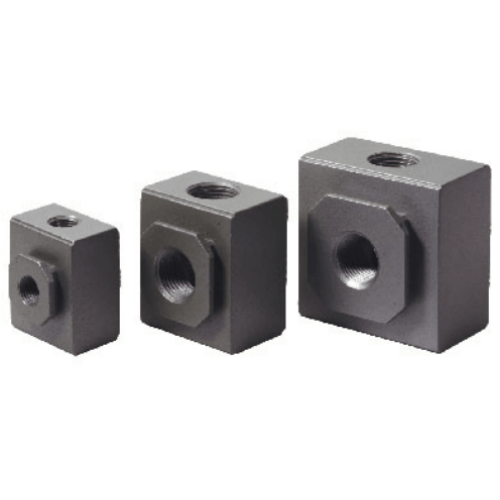

Airtac GA Manifold Block GA60025
2. Compatible with multiple mounting brackets for flexible configuration with regulators and lubricators. Available bracket types: T-style, L-style, U-style.
Category: Air Distribution Block | Brand: AIRTAC | Series: GA
AirTAC GA60025 Modular Manifold Block Specifications
- Model: GA60025
- Type: 5-station modular air distribution block
- Material: Anodized aluminum alloy (black finish)
- Port size: 1/4" NPT (G1/4 optional)
- Operating pressure: 0.1–0.9 MPa (14.5–130.5 PSI)
- Max flow rate: 900 NL/min (Cv≈1.6)
- Temperature range: -20℃ to 80℃
- Weight: 480g ±5%
- Dimensions: 80mm(L) × 40mm(W) × 34mm(H)
- Mounting pattern: ISO 15407-1 compliant
- Seal material: HNBR (hydrogenated nitrile)
- Surface hardness: HV0.3 ≥350
- Port thread depth: 10mm (minimum engagement)
High-density modular manifold designed for centralized pneumatic control systems. Features integrated O-ring groove design for leak-free connections and staggered port arrangement enabling compact plumbing. Compatible with most ISO-standard solenoid valves. Includes pre-drilled mounting holes for DIN rail or direct panel installation.
- Multi-axis pneumatic actuator synchronization
- Robotic end-effector tooling stations
- CNC machine tool clamping systems
- Automated assembly line distribution hubs
- Semiconductor handling equipment
Installation note:
Apply 20-30 N·m torque during valve mounting. Use PTFE tape or liquid sealant
on male threads only. Maintain 50mm clearance below manifold for tubing access.
| Property | Property Value |
|---|---|
| sku | GA60025 |
| Port Size | PT 1/8 |
