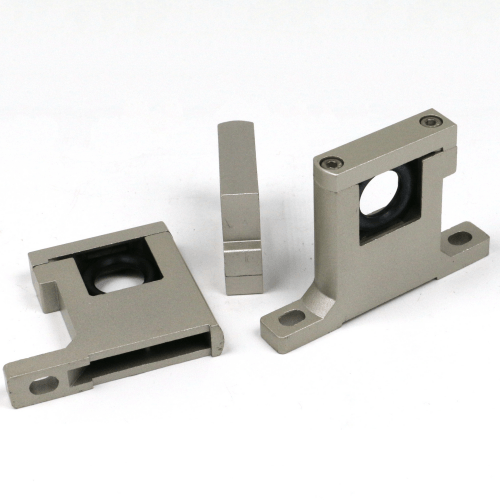

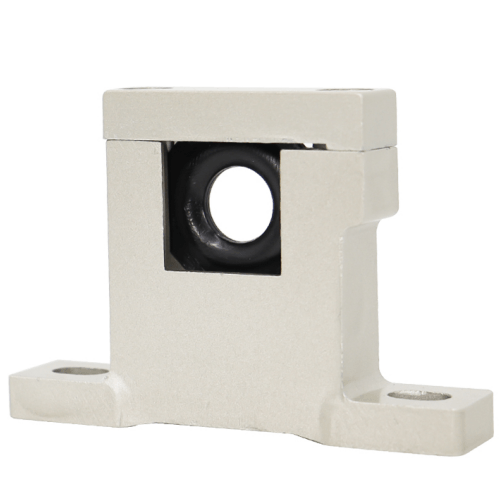

Airtac GA-P1 Bracket GA200T-P1
2. Offers multiple bracket configurations for connecting pressure regulators and lubricators. Available in T-type, L-type, and U-type configurations to accommodate diverse piping layouts.
Category: Bracket , Brand: AIRTAC , Series: GA-P1
AirTAC GA-P1 Bracket GA200T-P1 Technical Specifications
- Model: GA200T-P1
- Type: Cylinder Mounting Bracket (Double Rod Type)
- Material: Aluminum Alloy ADC12
- Surface Treatment: Black Anodized
- Compatible Cylinder Series: GA-20 (20mm Bore Size)
- Mounting Hole Spacing: 30±0.2mm (Center-to-Center)
- Bolt Specifications: M5×0.8 Thread Pitch
- Load Capacity: Max 150N Static Load
- Weight: 218g ±5g
- Dimensions: 62mm(L) × 40mm(W) × 34mm(H)
- Operating Temperature: -20℃ to 80℃
- Vibration Resistance: ≤10-55Hz (1.5mm Amplitude)
- Corrosion Resistance: 96hrs Salt Spray Test Pass
Precision-engineered mounting solution for GA series cylinders, featuring CNC-machined alignment grooves and reinforced rib design. The anodized surface provides enhanced wear resistance and prevents galvanic corrosion when used with stainless steel components. Includes pre-installed shock-absorbing rubber pads (2mm thickness) for vibration dampening.
- Robotic arm joint fixation in automated assembly lines
- Vertical cylinder mounting in packaging machinery
- Precision positioning stages for optical equipment
- Material handling systems requiring vibration isolation
- Multi-axis pneumatic actuator configurations
Installation Guidelines:
Use torque-controlled wrench (recommended 2.5-3.0N·m) for M5 fasteners.
Apply thread-locking compound on bolts when used in high-vibration environments.
Maintain 0.5-1mm clearance between bracket and cylinder end for thermal expansion.
